The model contains the most popular formats:
1. 3DS MAX: *.max
2. Blender: *.blend
3. Rhinoceros: *.3dm
4. SketchUp: *.skp
5. Wavefront OBJ: *.obj *.mtl (Multi Format)
6. FBX: *.fbx (Multi Format)
7. STEP: *.step *.stp (NURBS)
8. IGES: *.iges *.igs (NURBS)
9. ACIS: *.sat (NURBS)
10. 3DS MAX all ver.: *.3ds (Multi Format)
11. Stereolithography: *.stl
12. AutoCAD: *.dwg
- Each file was checked for opening and full content by the model.
- The 3D model was created on real base. It’s created accurately, in real units of measurement, qualitatively and maximally close to the original.
- Renders Are made in Luxion Keyshot
- “WE PROVIDE 3D MODEL CHEAP PRICE BUT WITH GOOD QUALITY”
- If you need any other formats we are more than happy to make them for you. Contact me for any question :)
Sincerely Your, SURF3D
MORE INFORMATION ABOUT 3D MODELS :

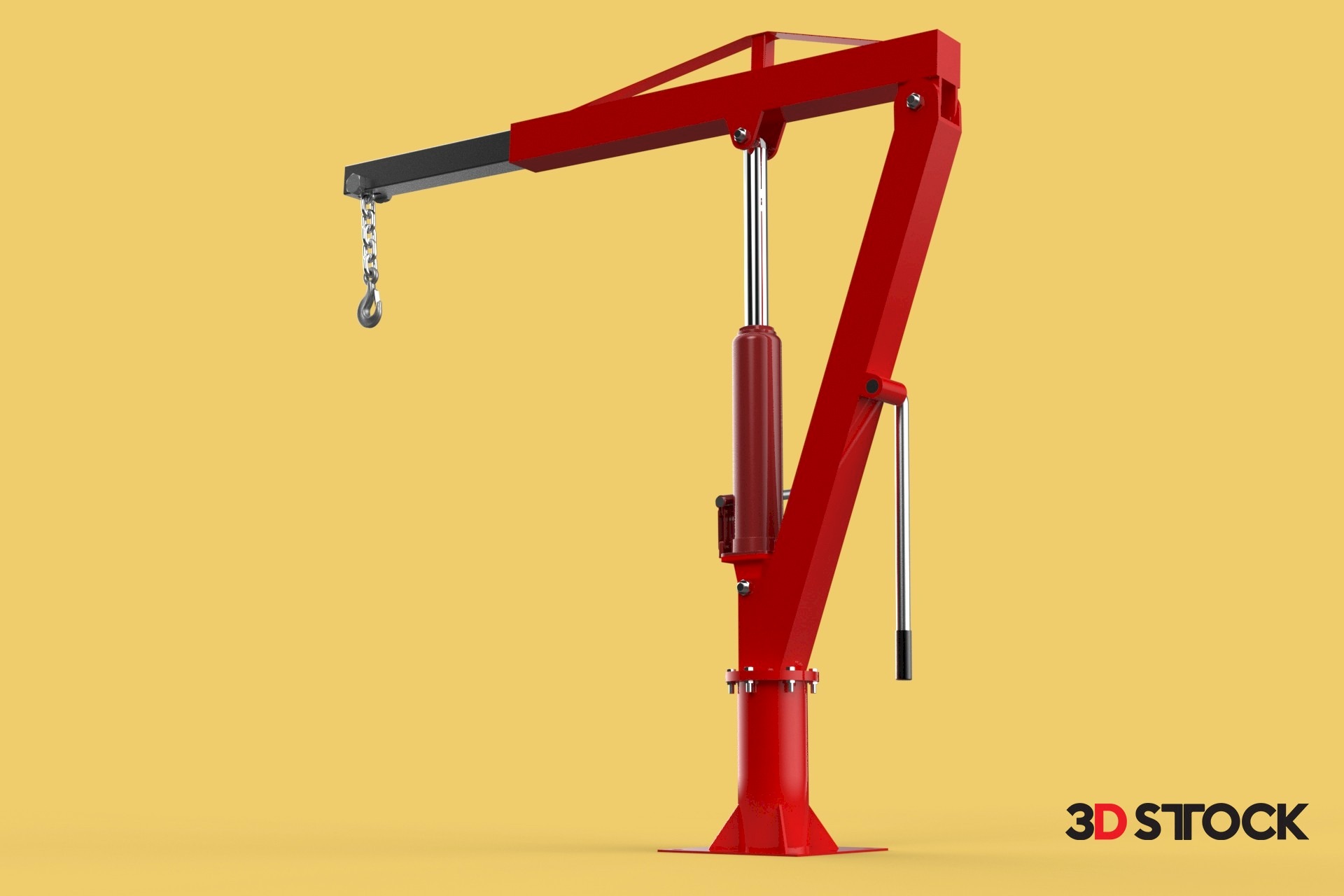

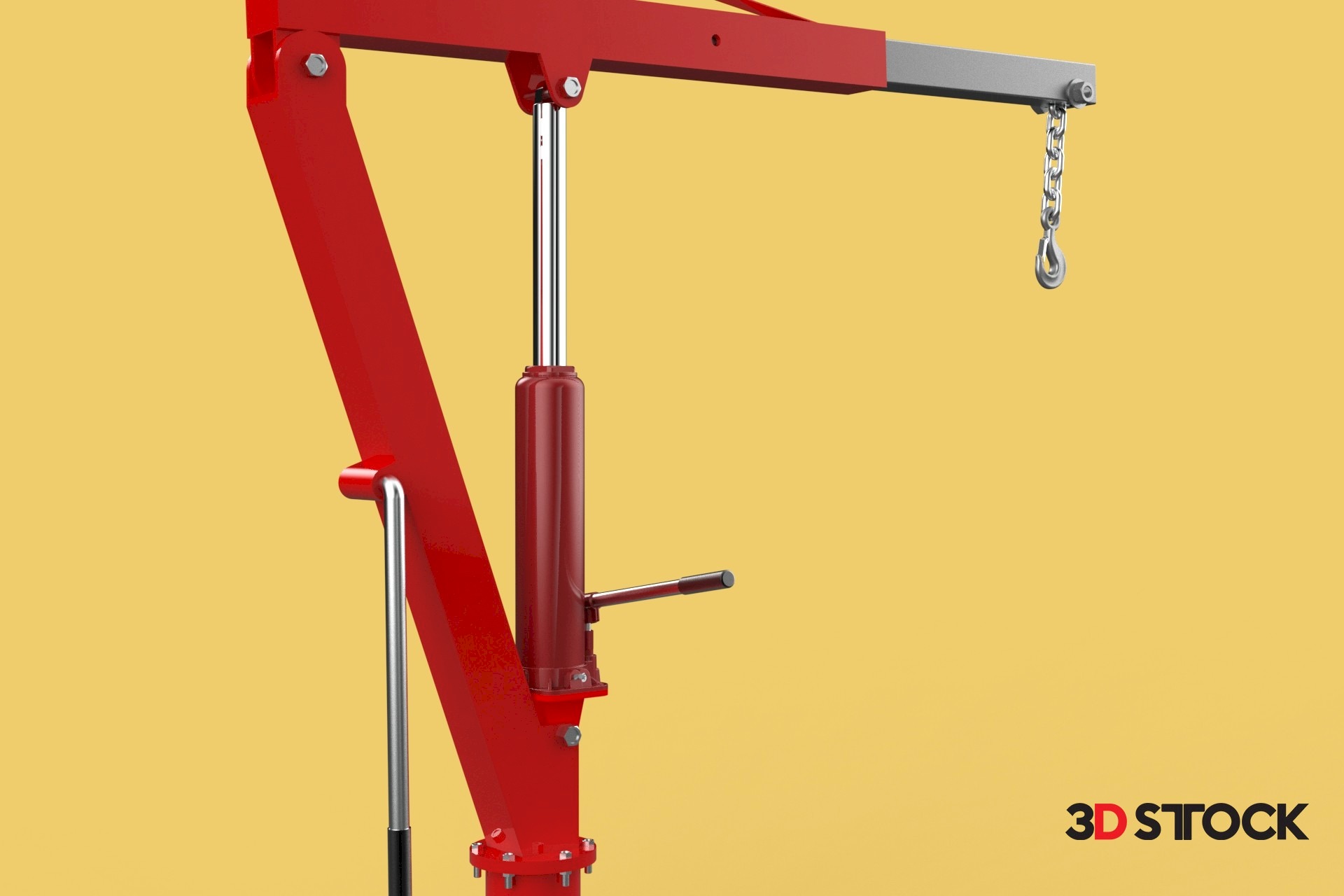

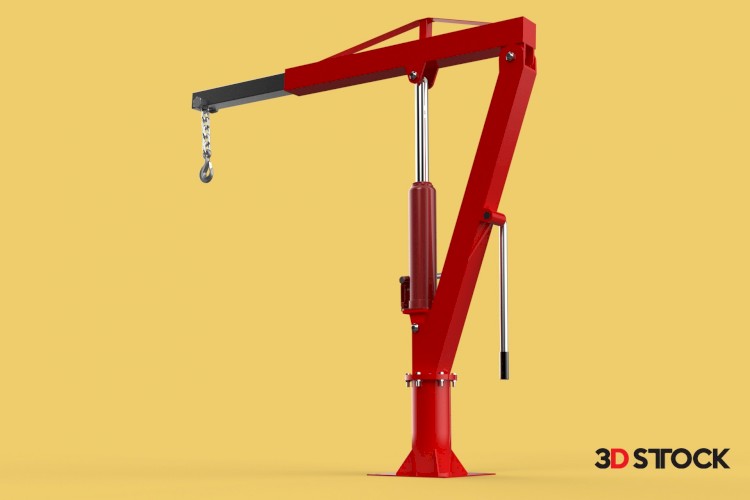

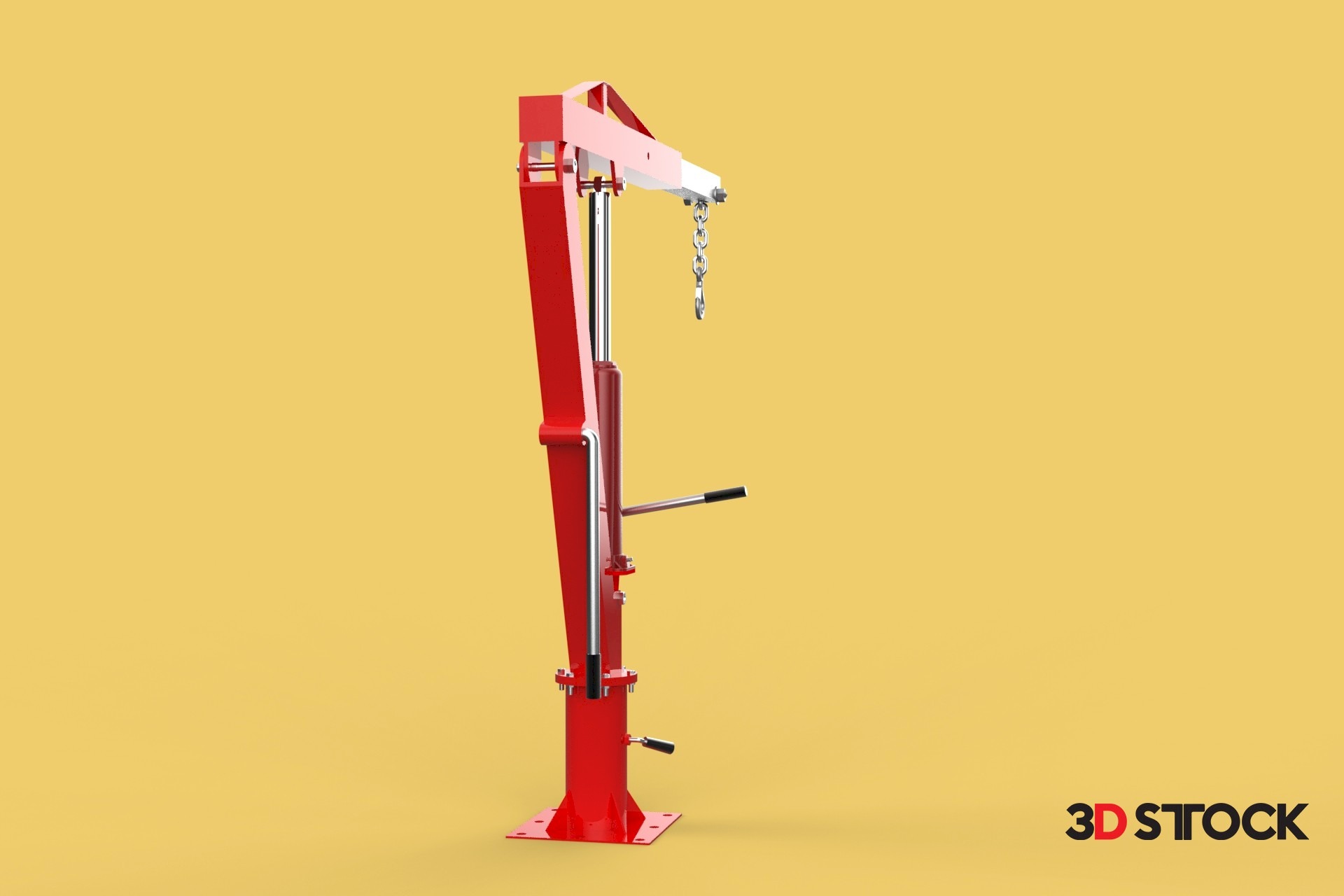

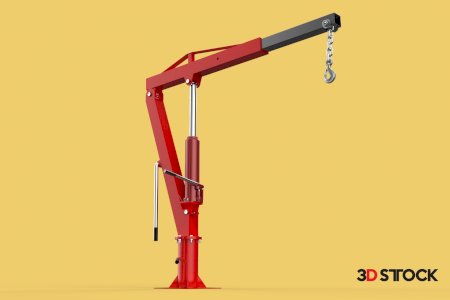

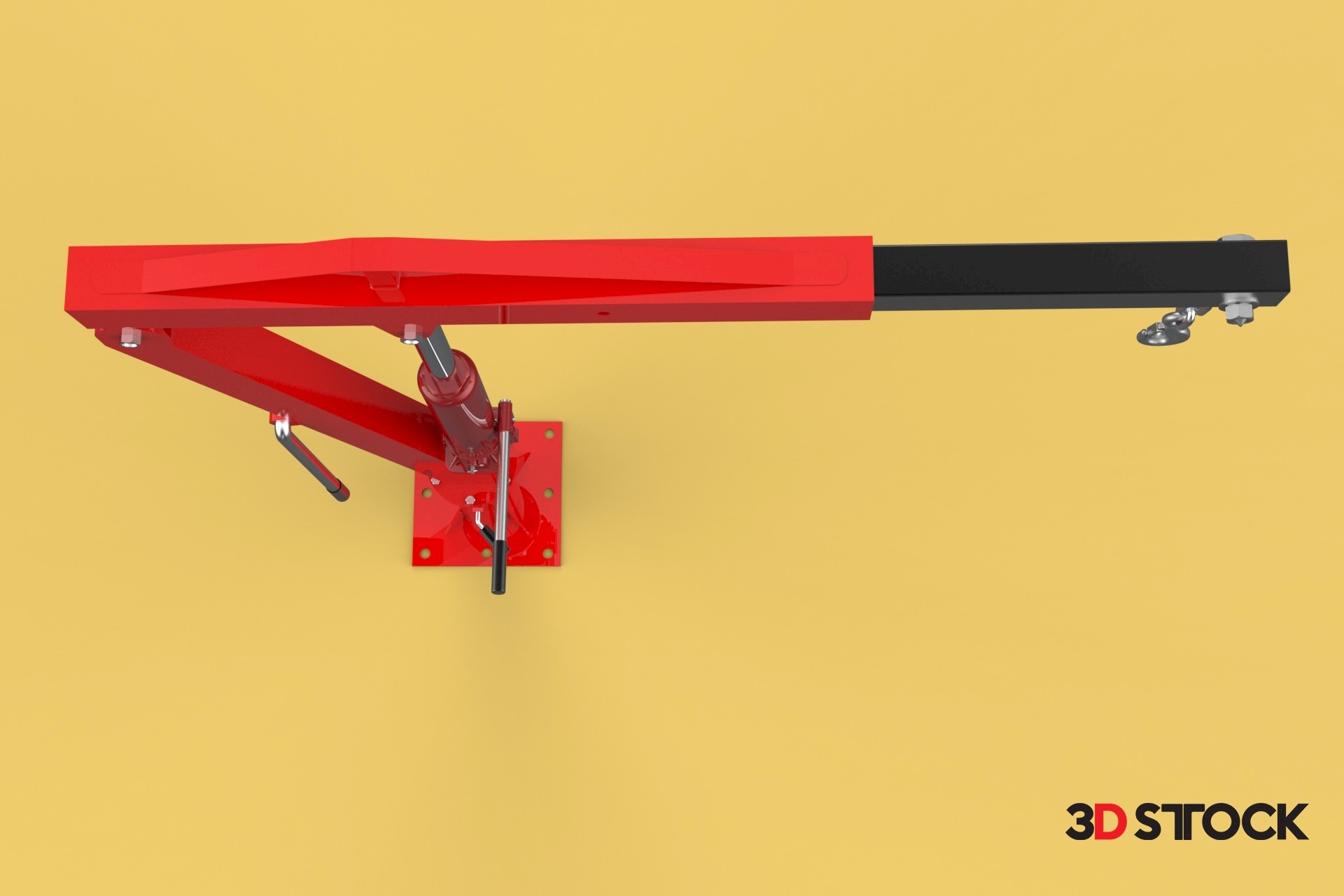

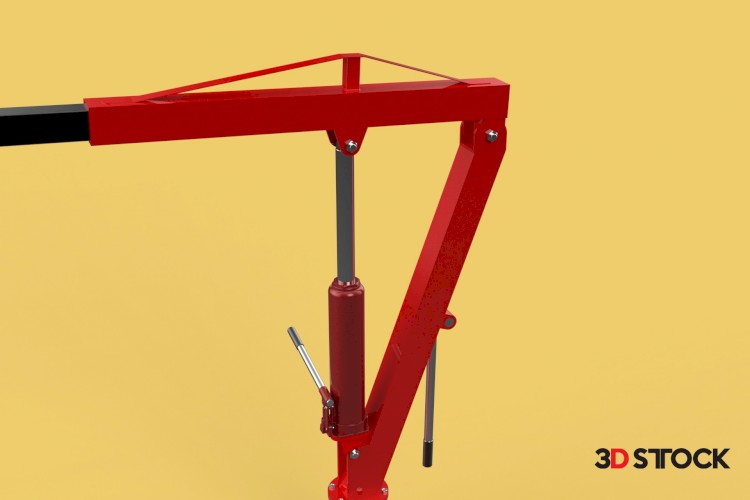

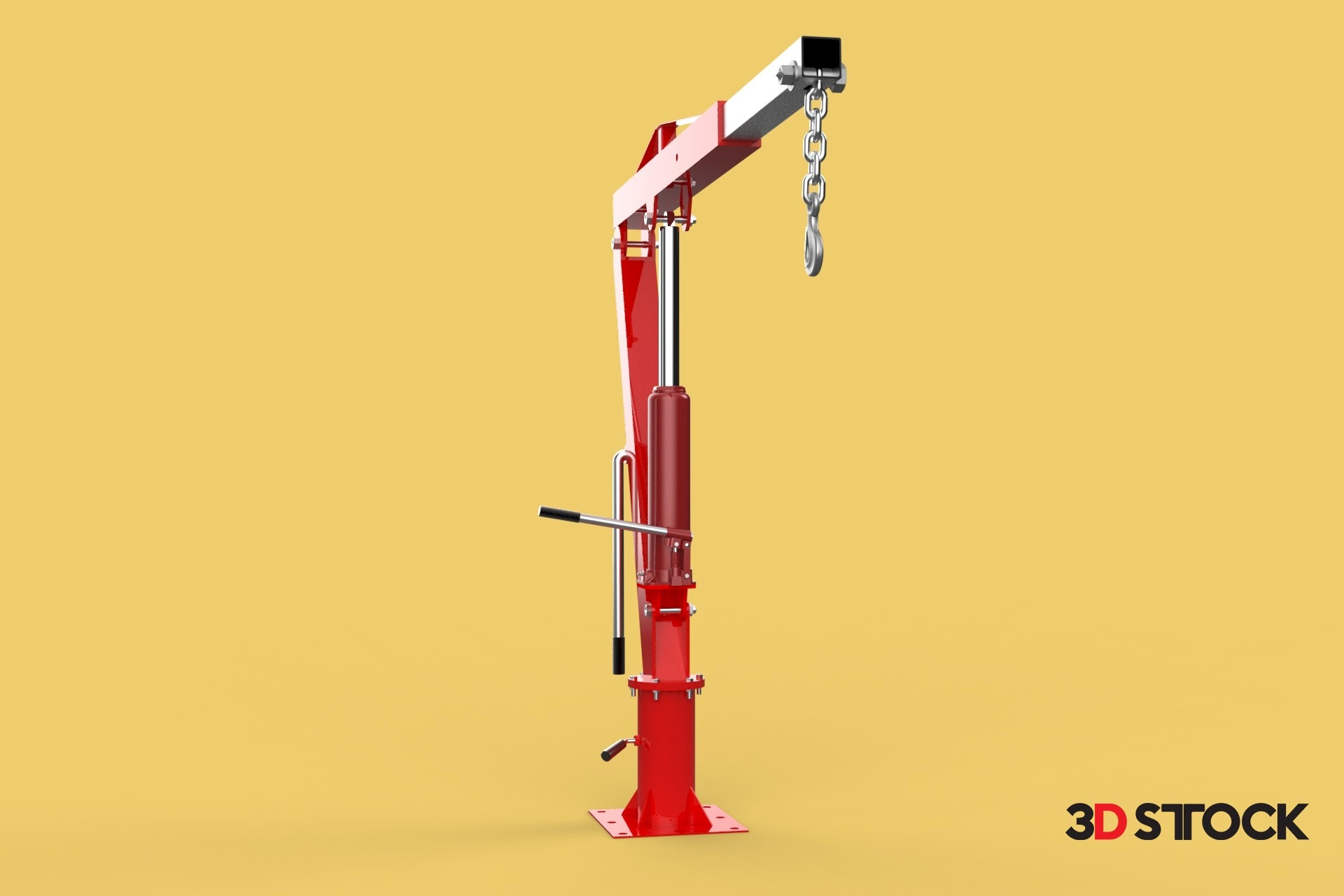

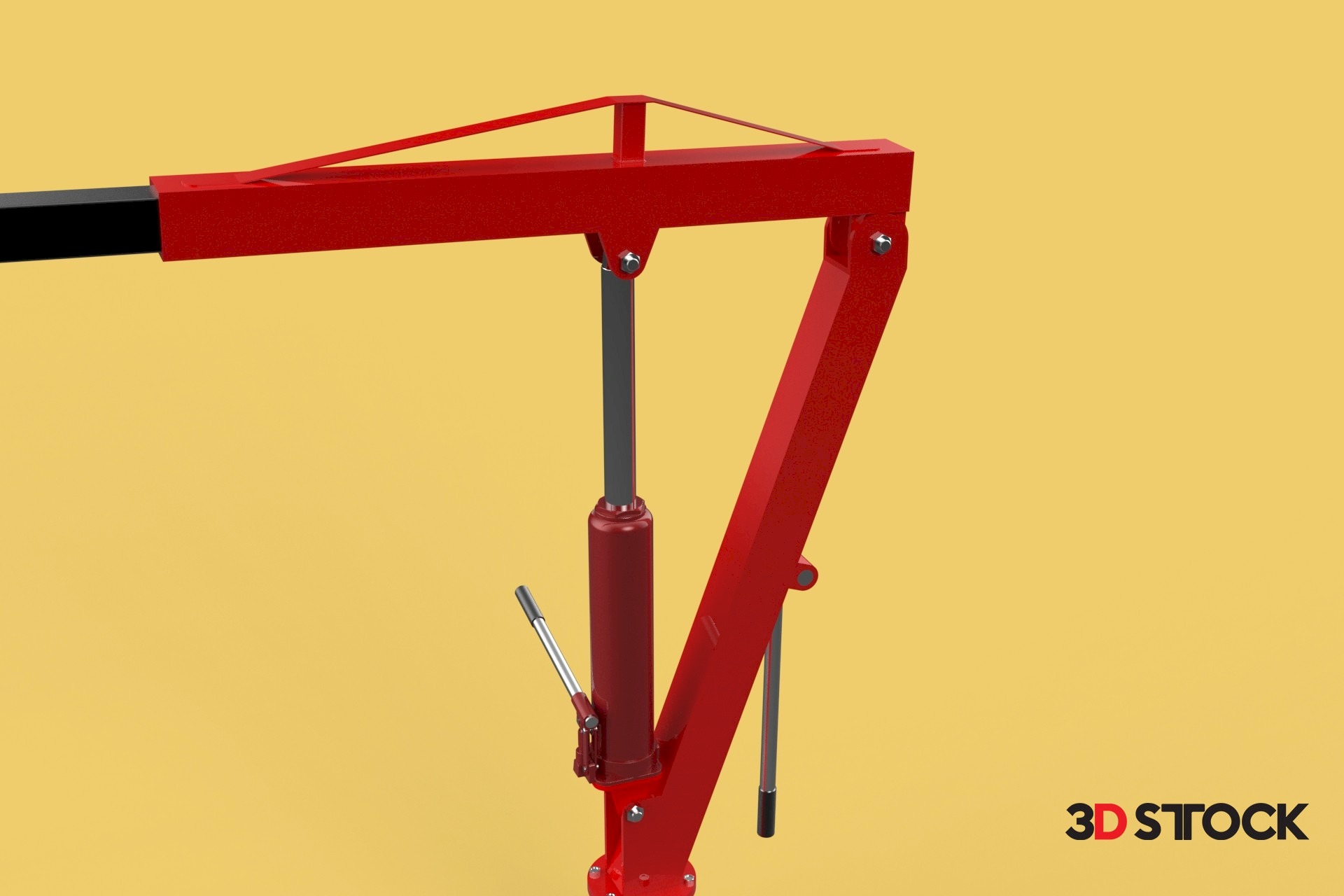

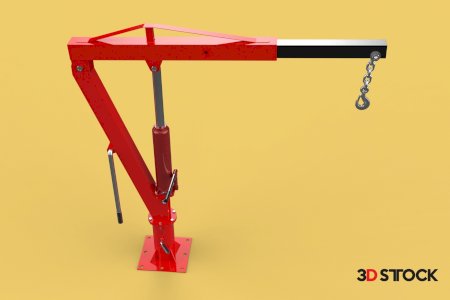

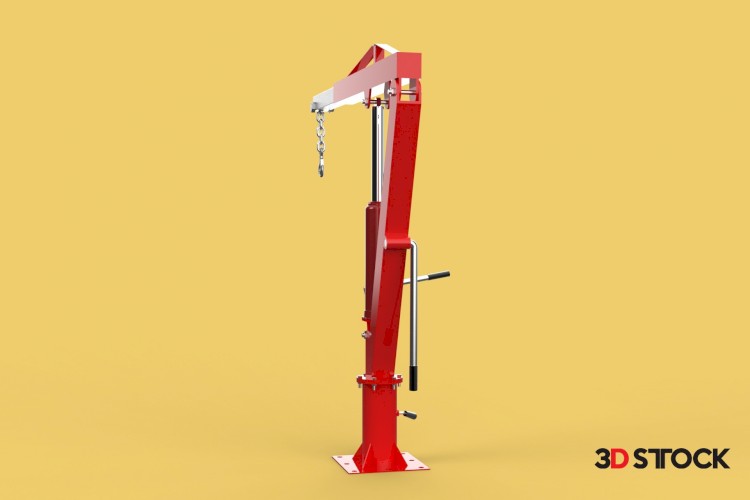

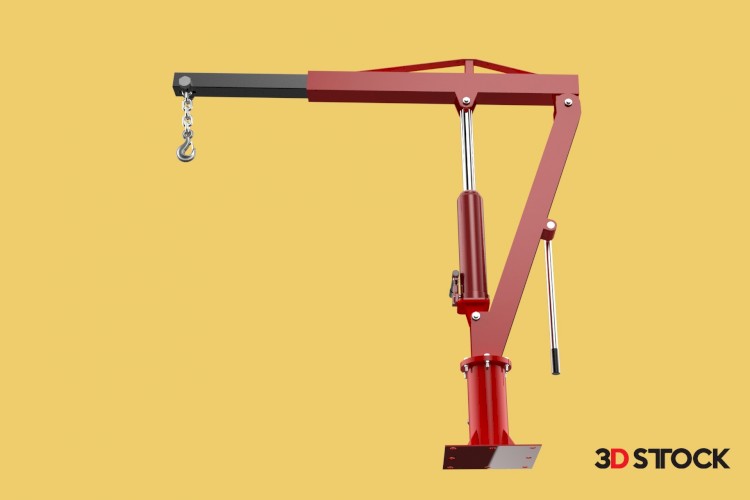

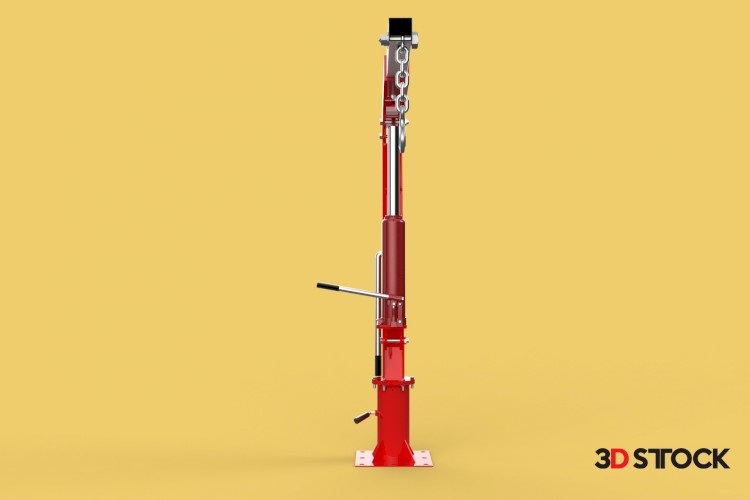

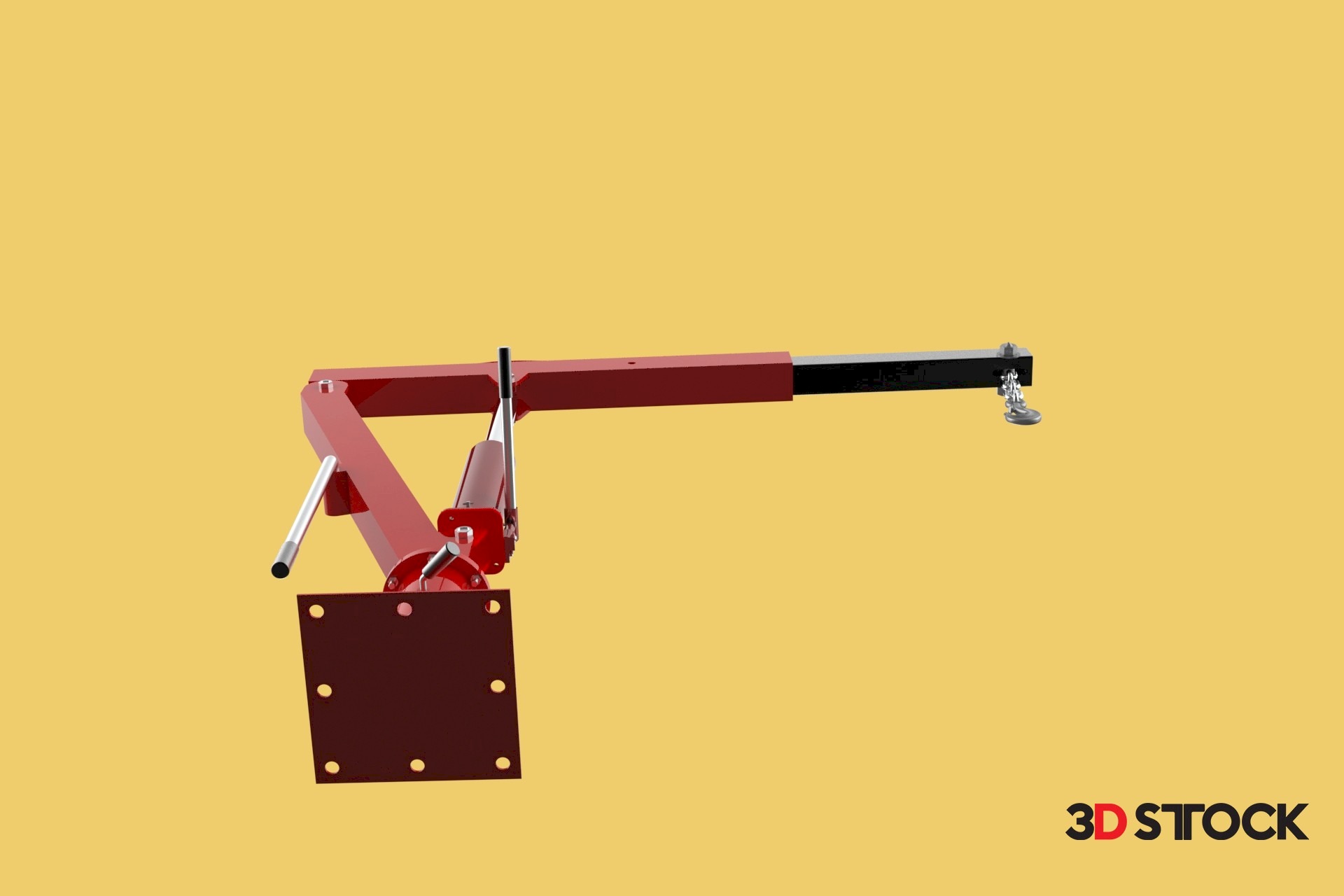

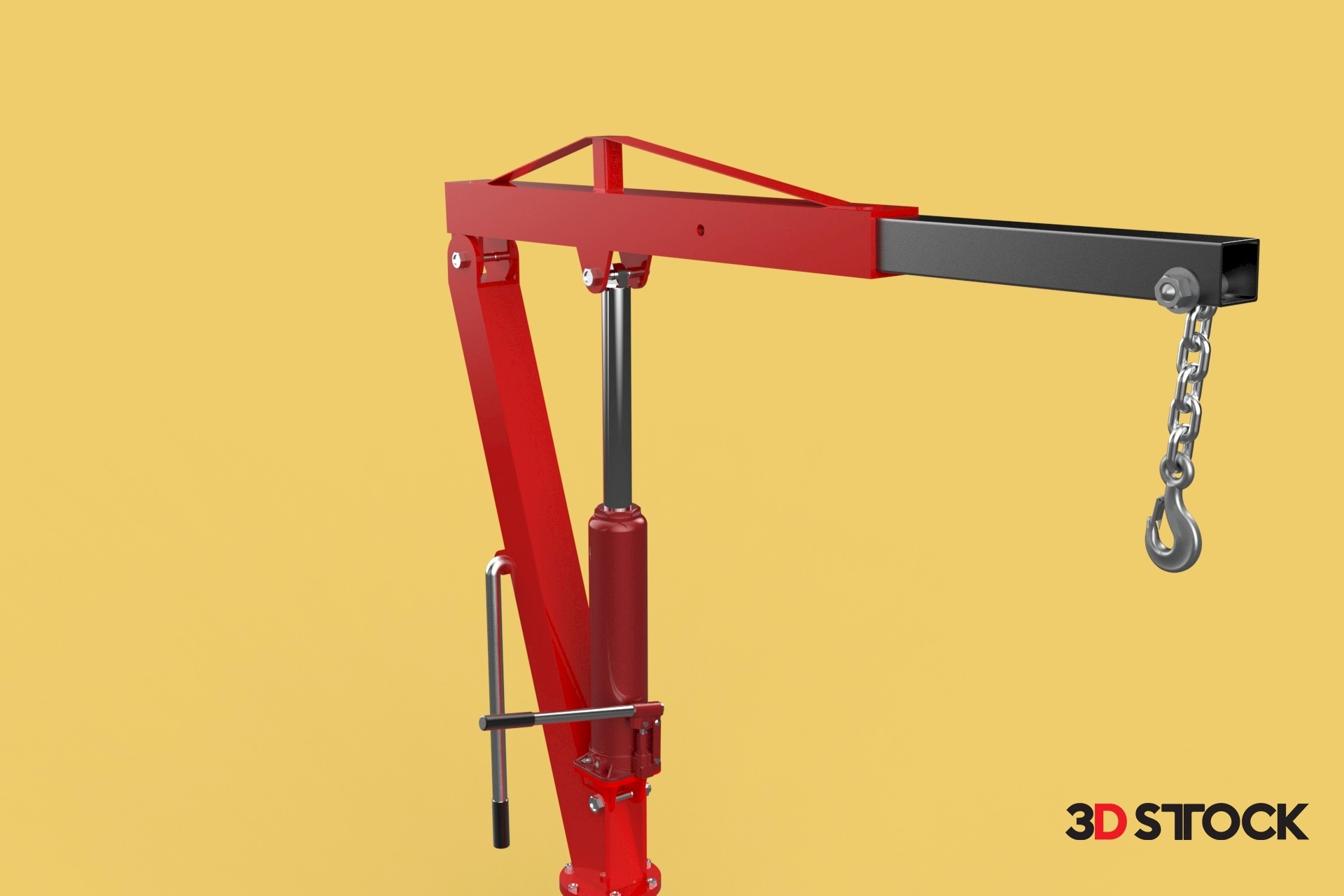

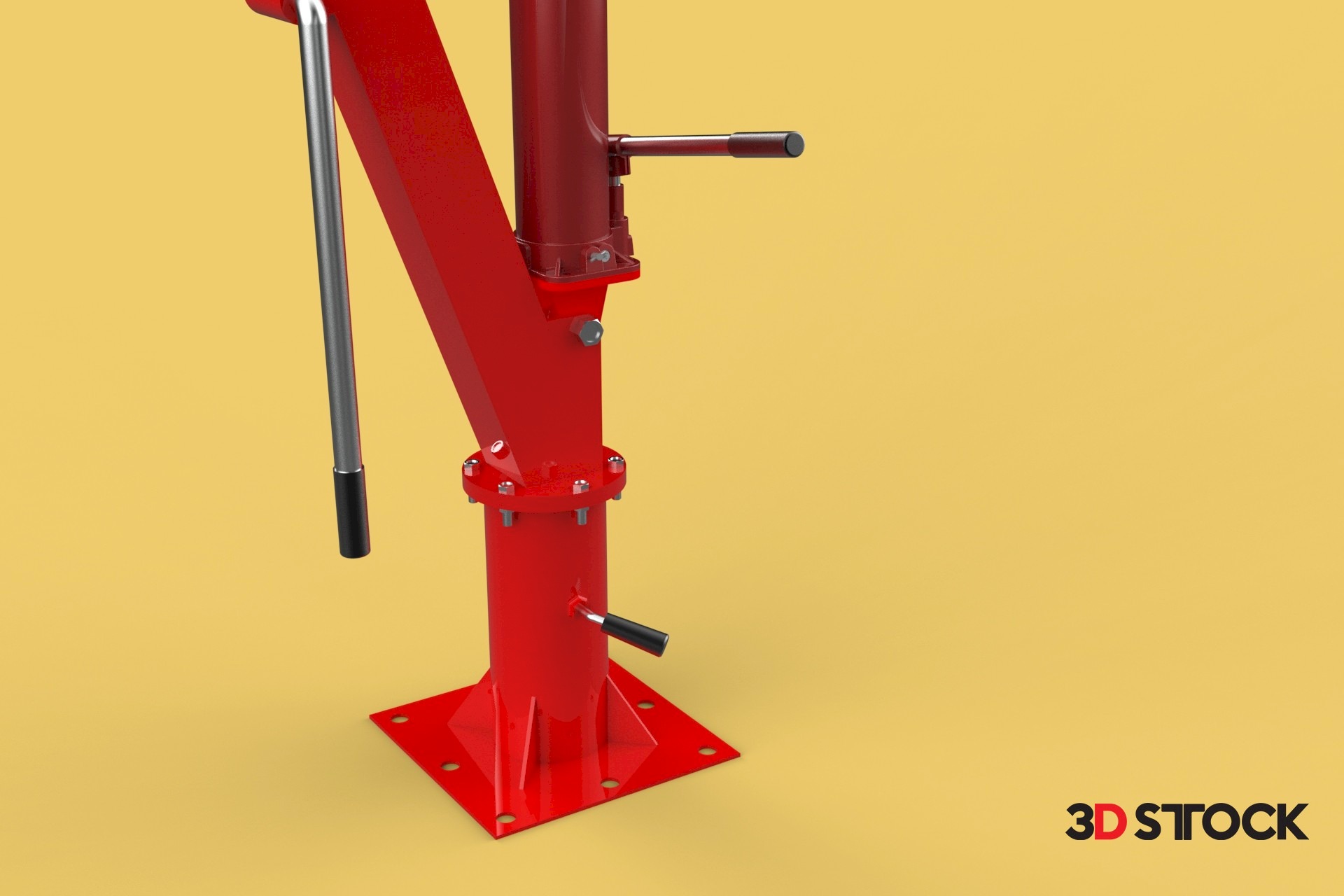

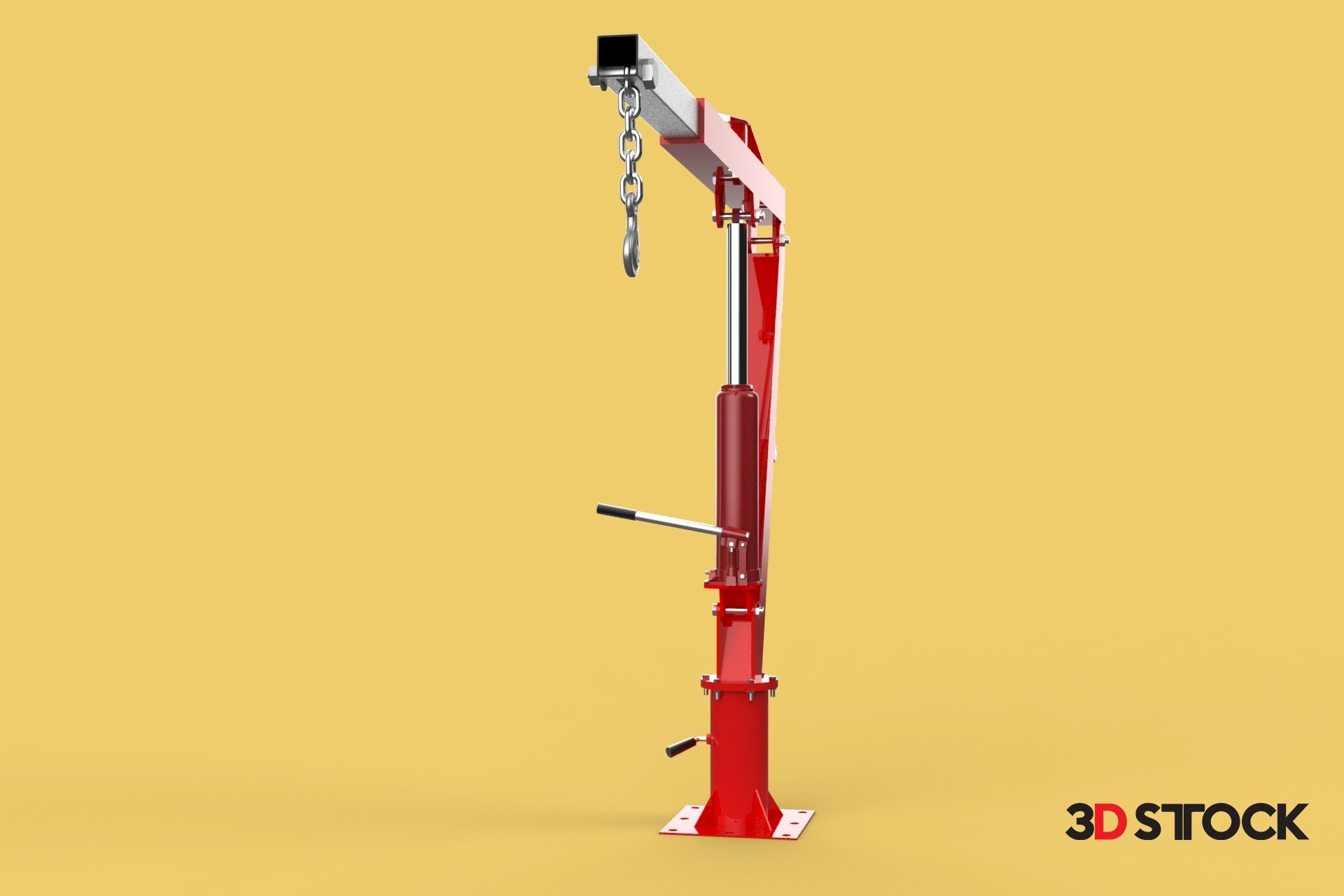

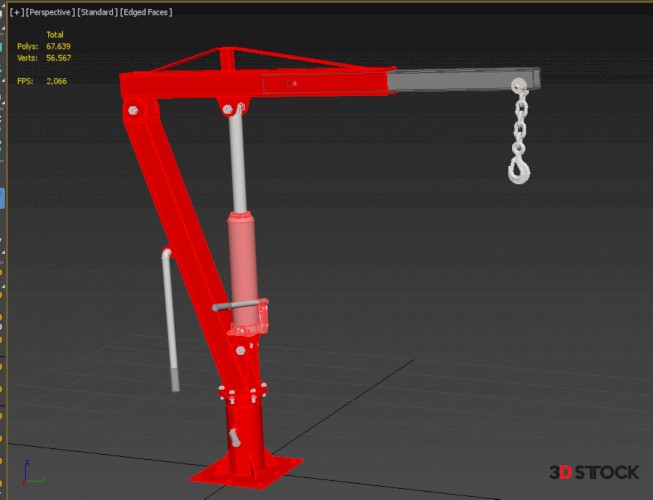

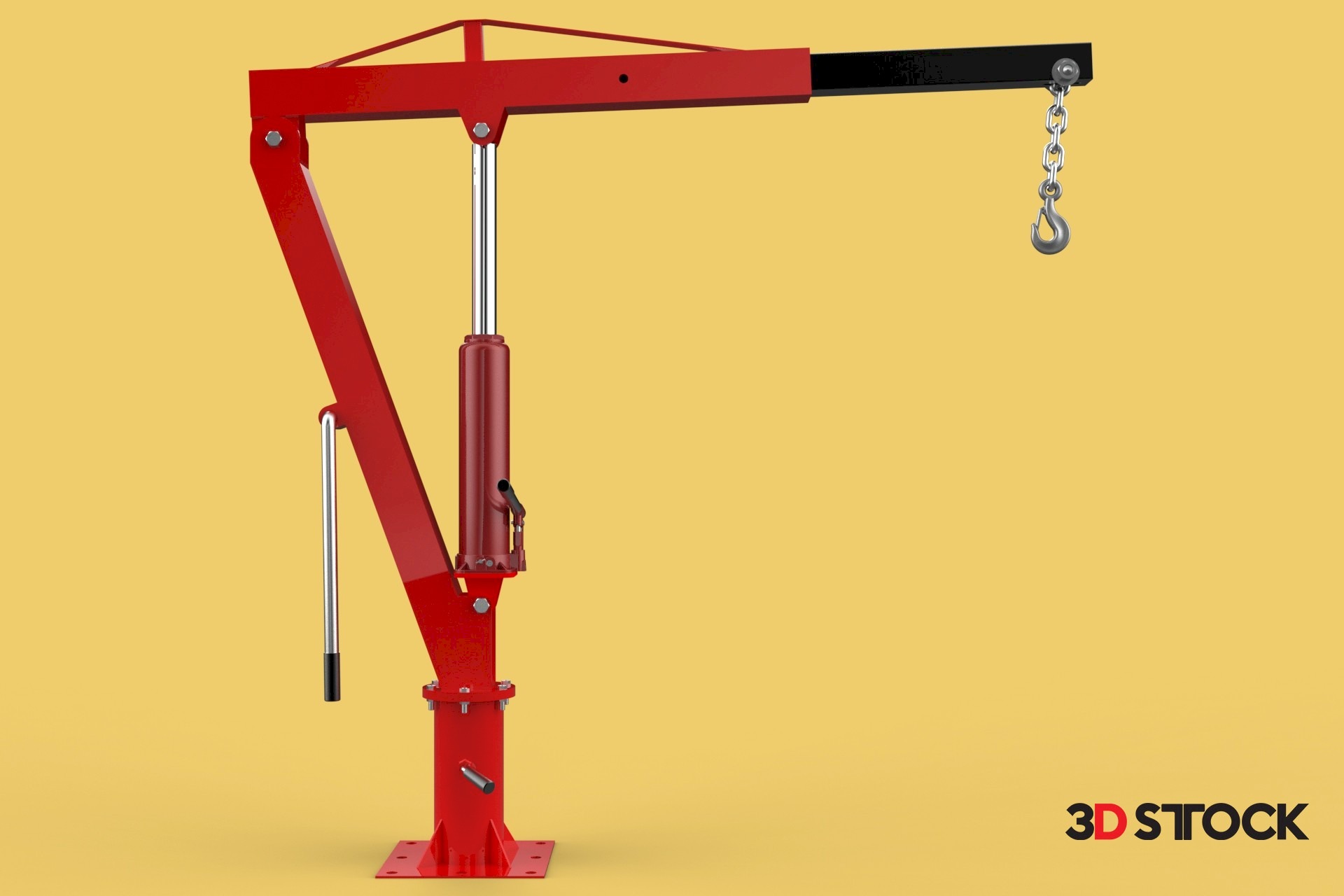

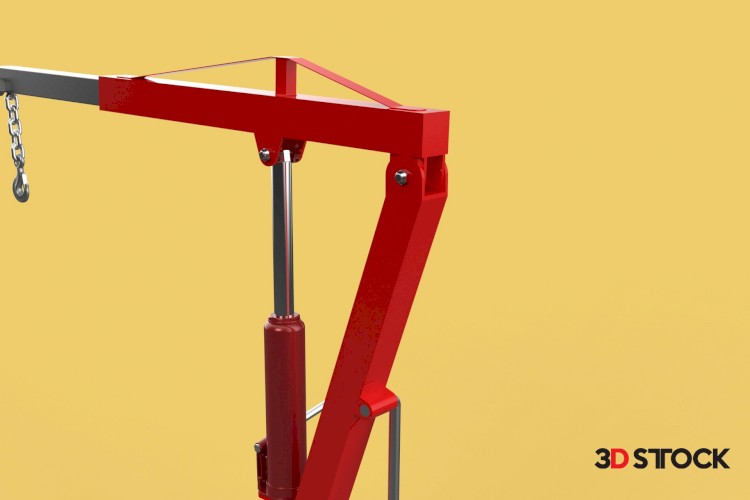

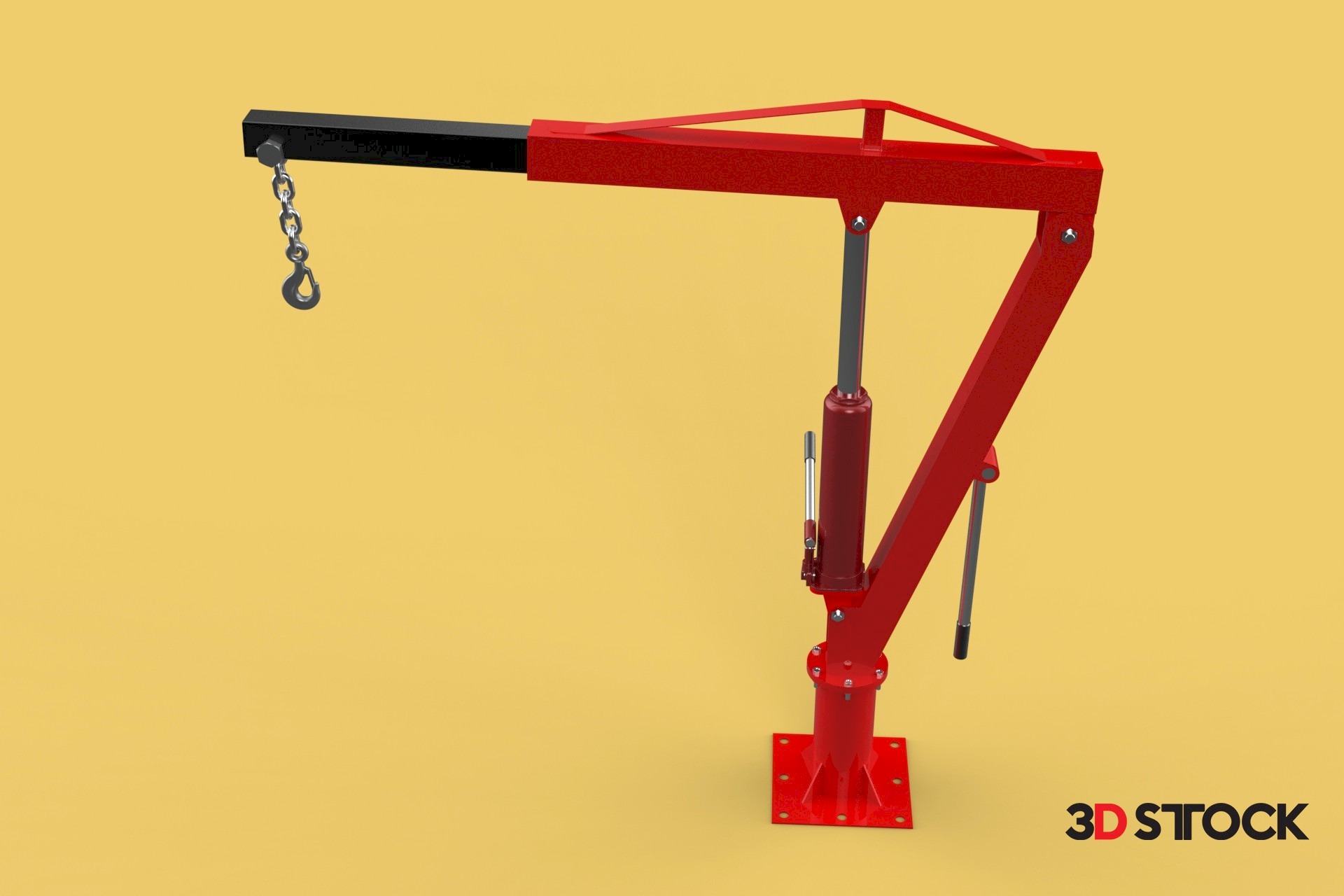

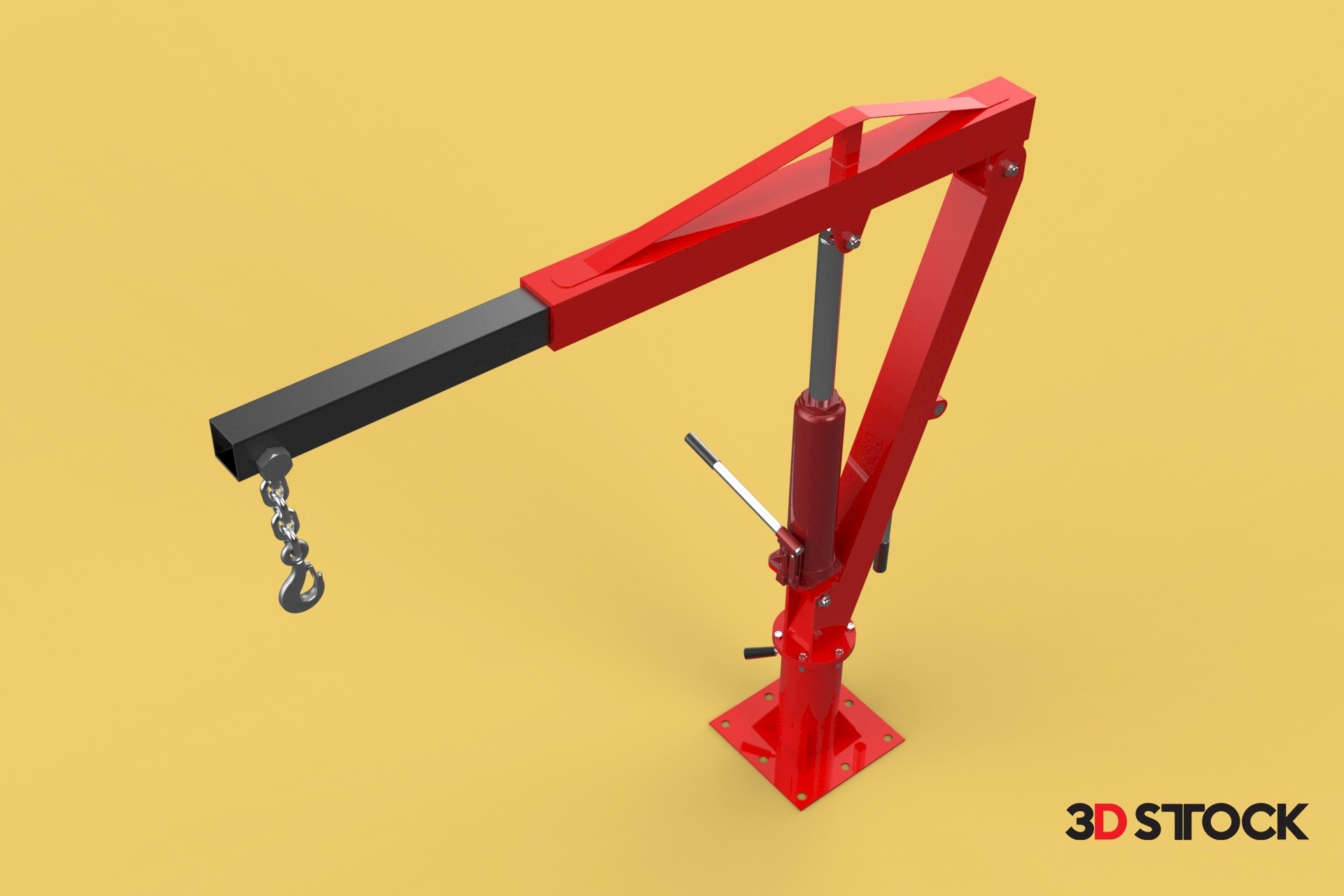

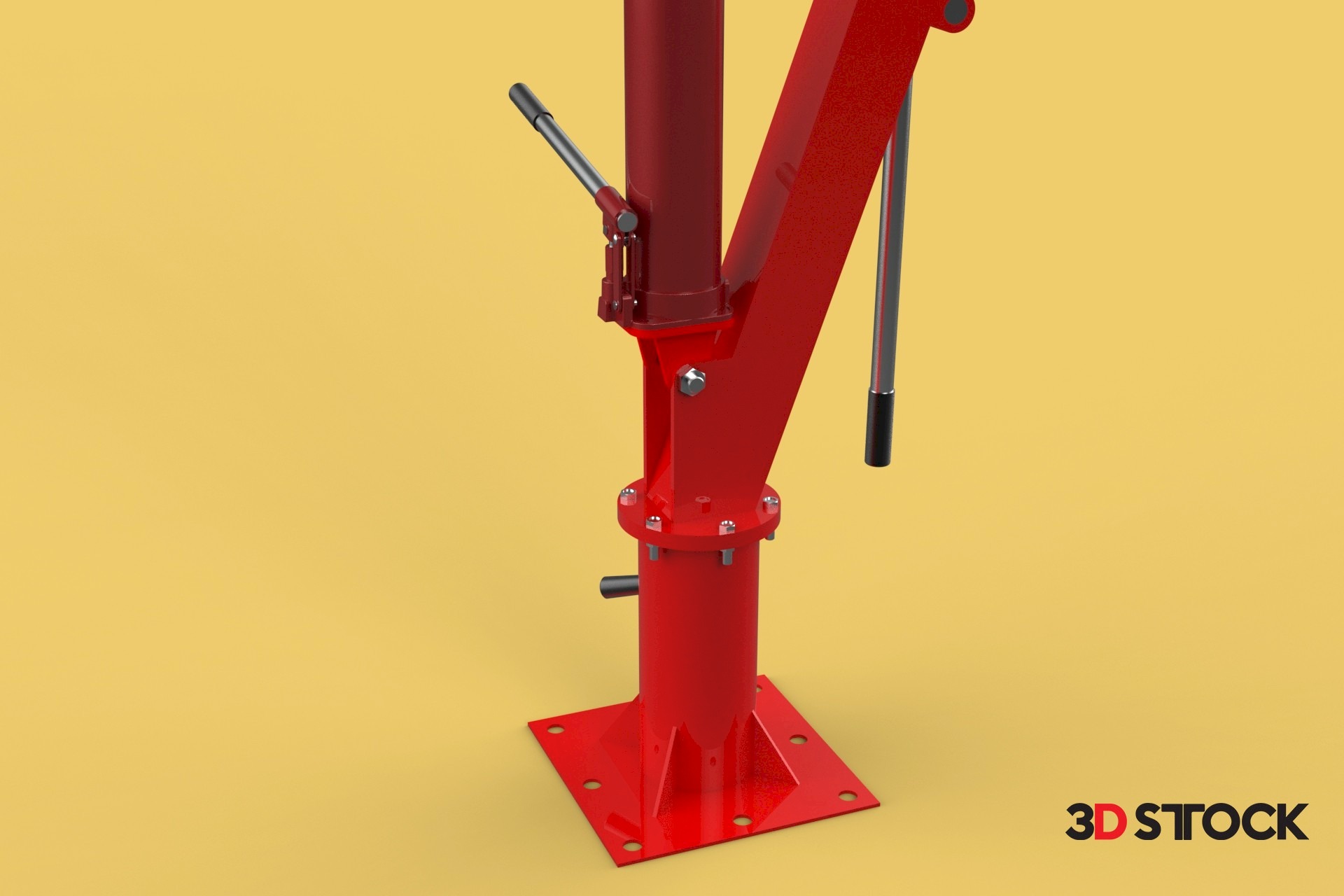

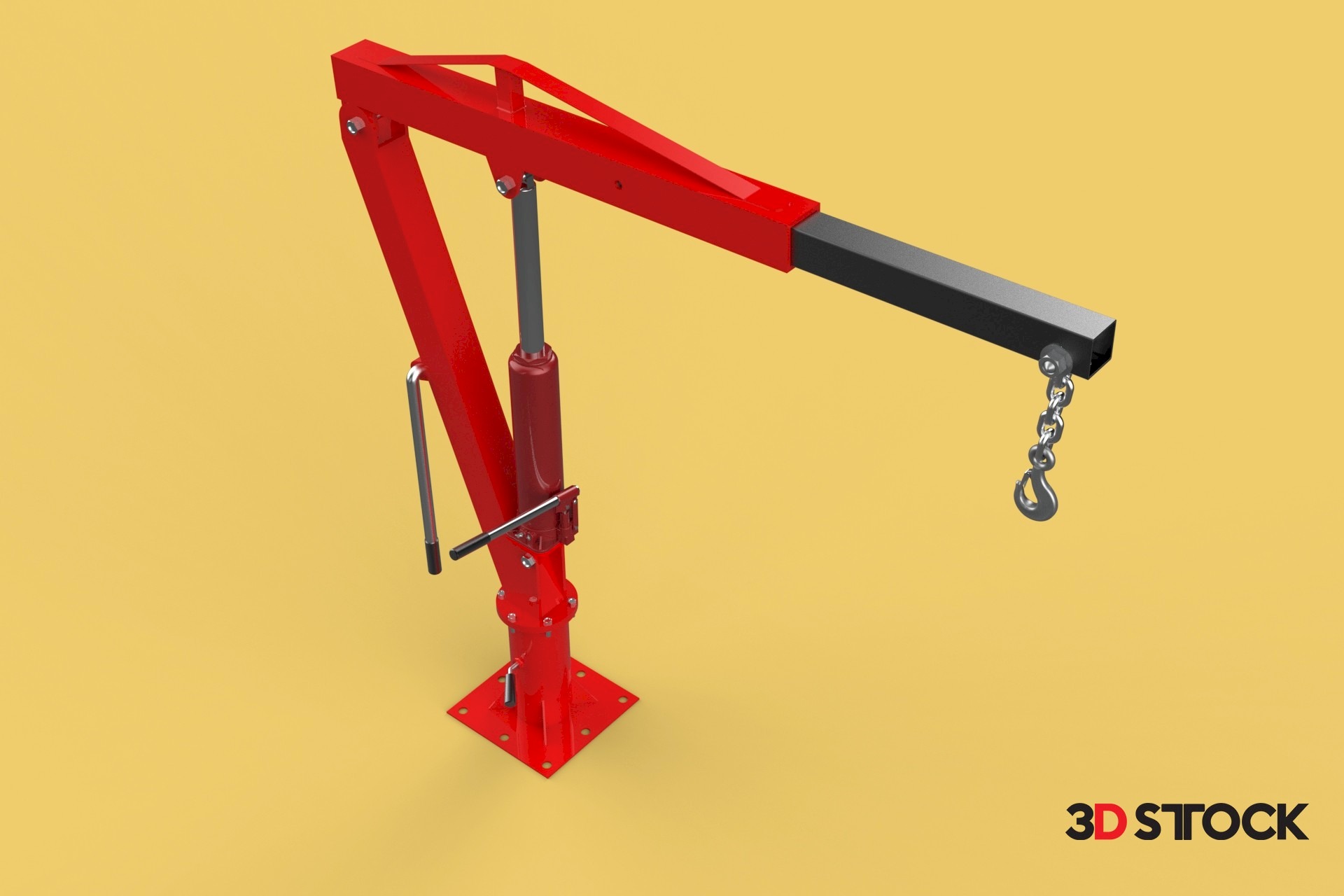

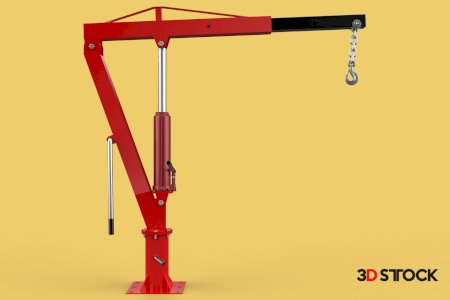

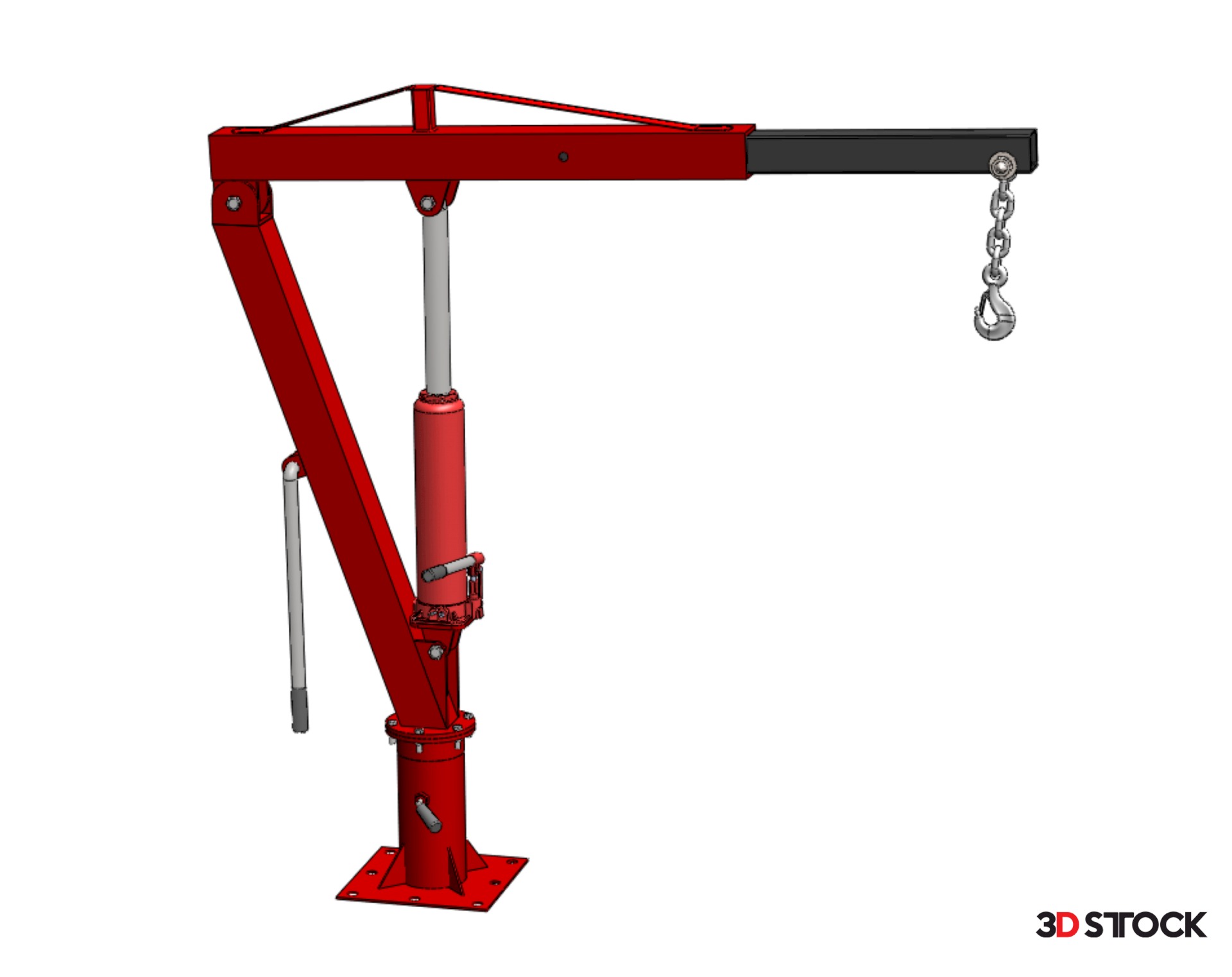

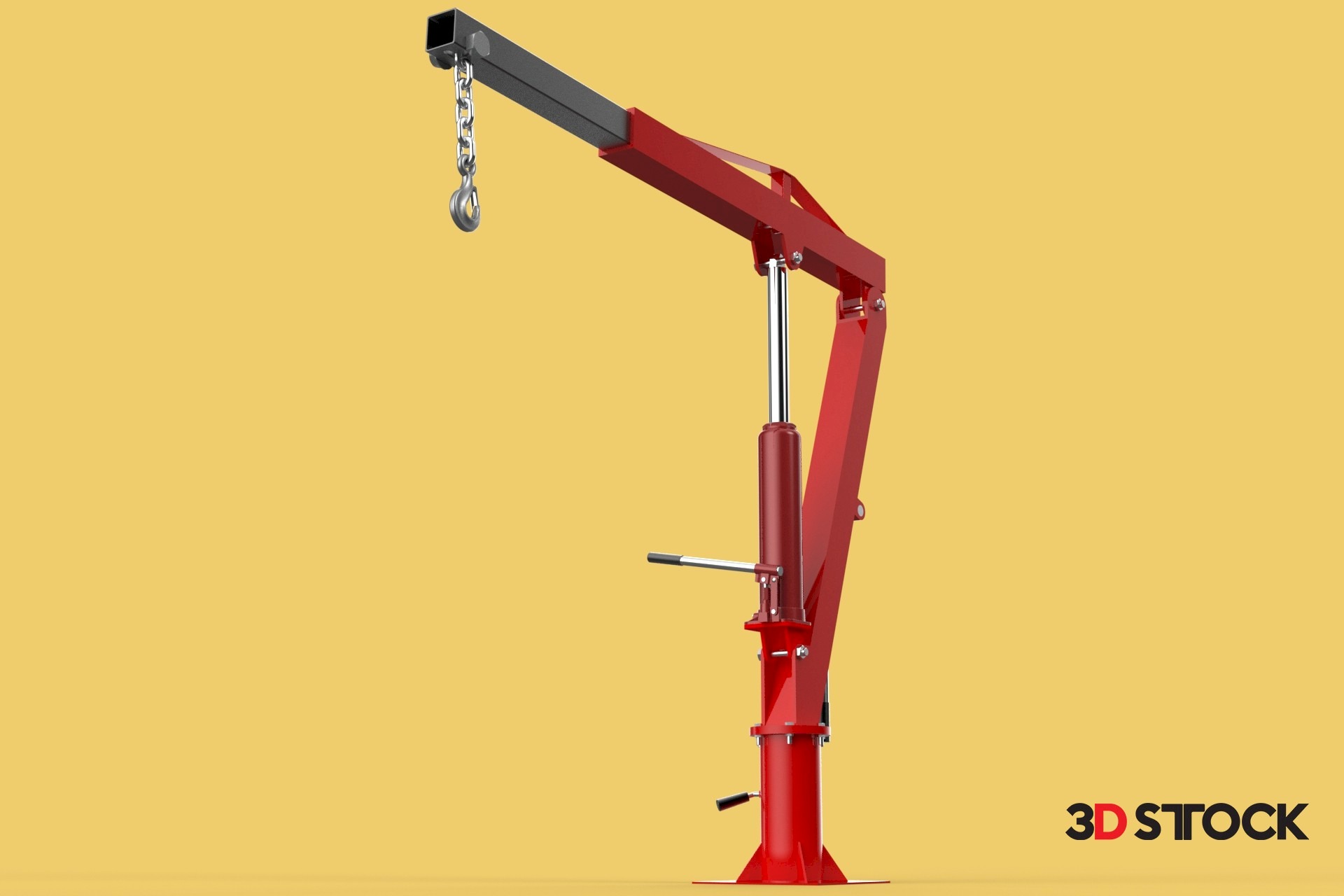

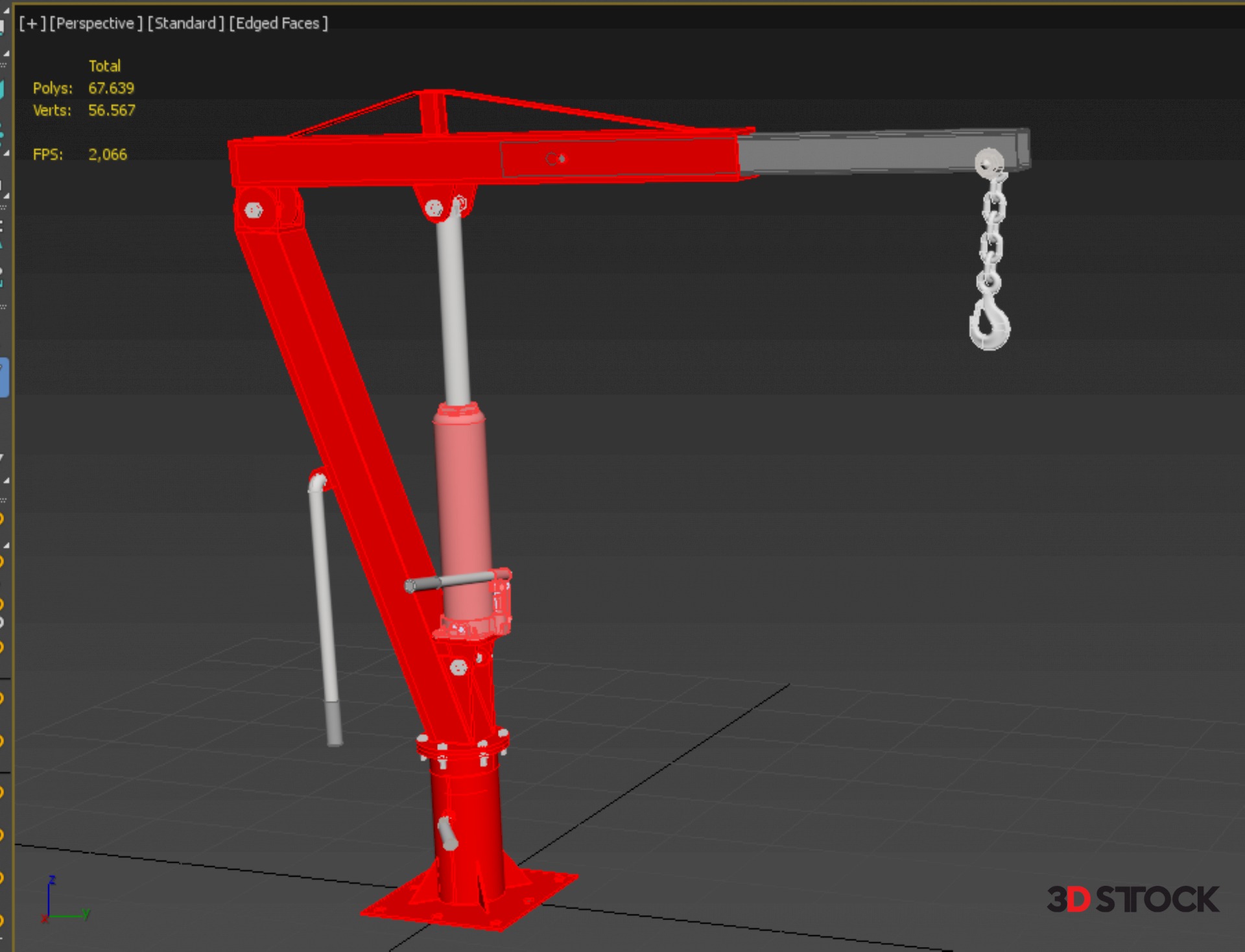

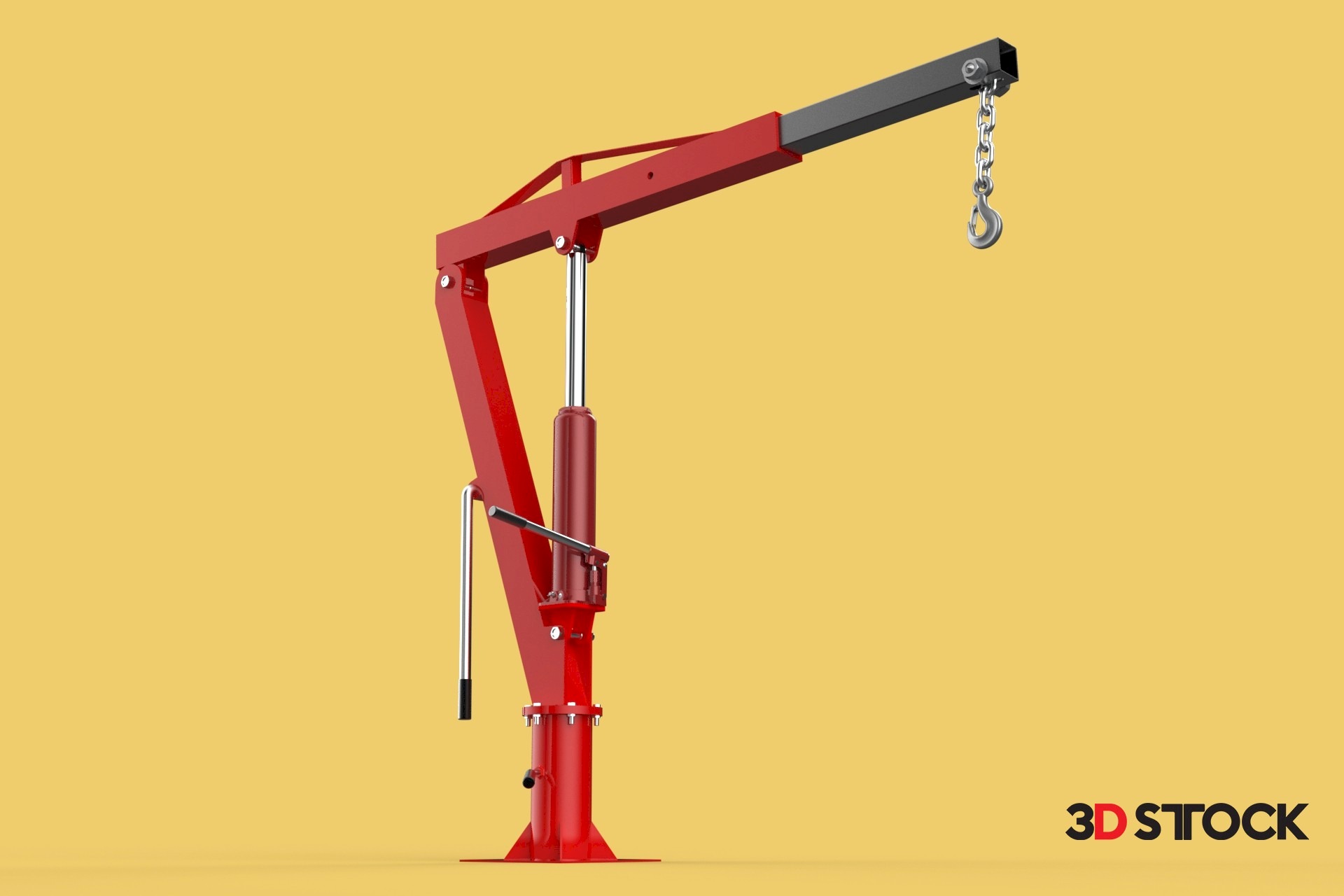

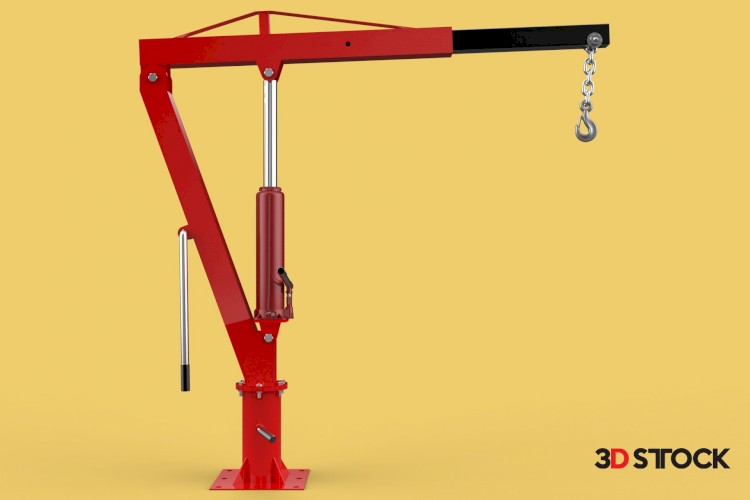

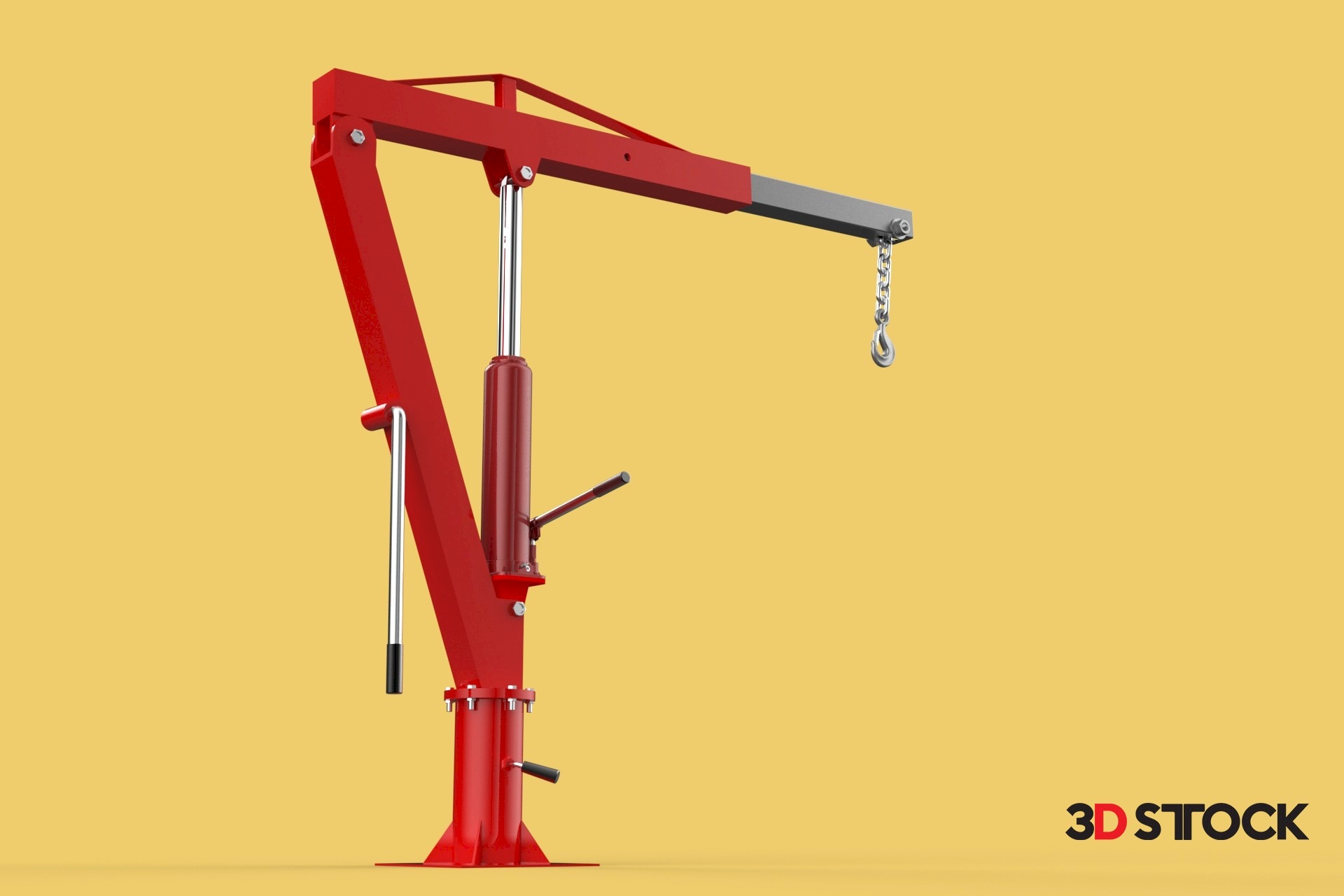

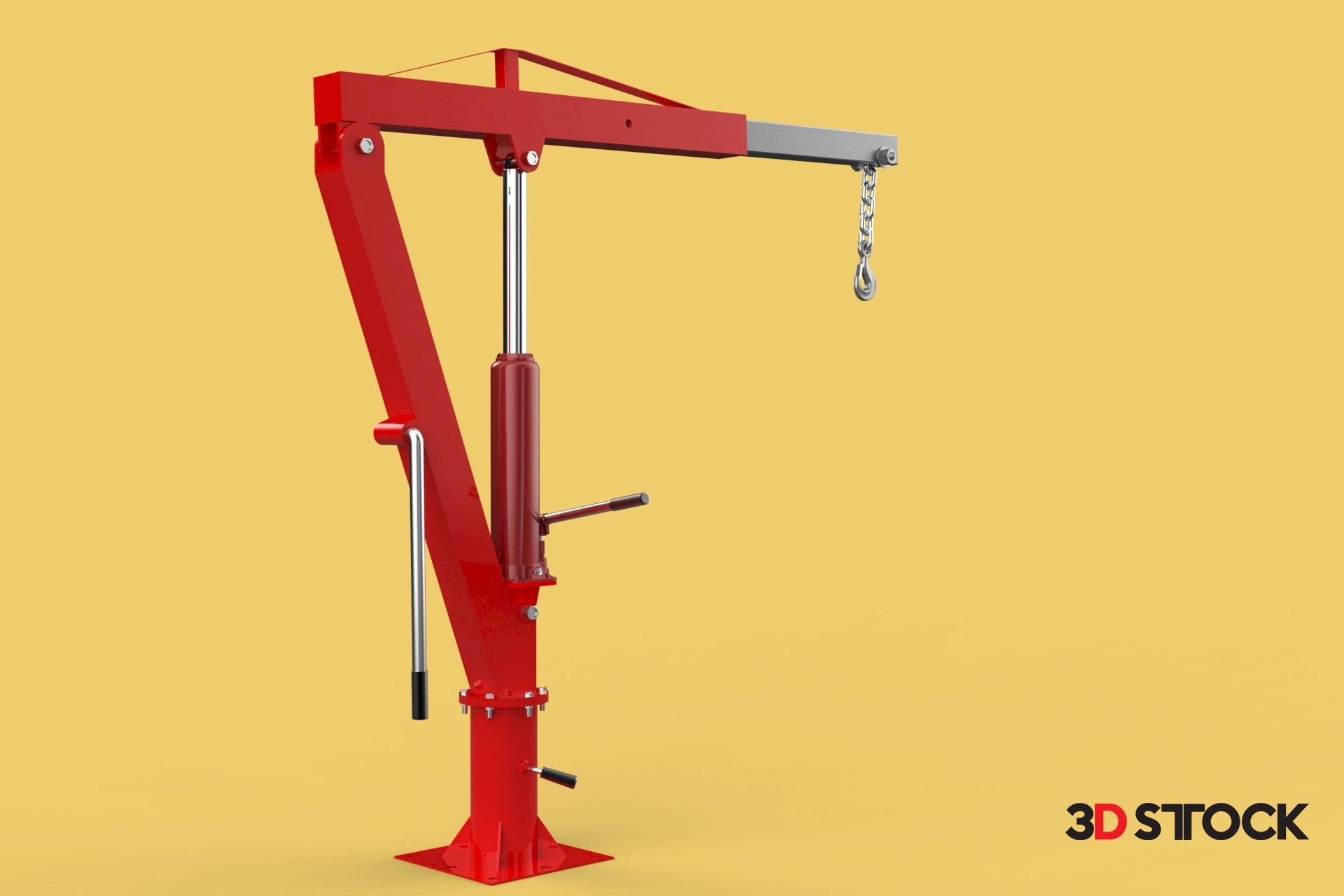

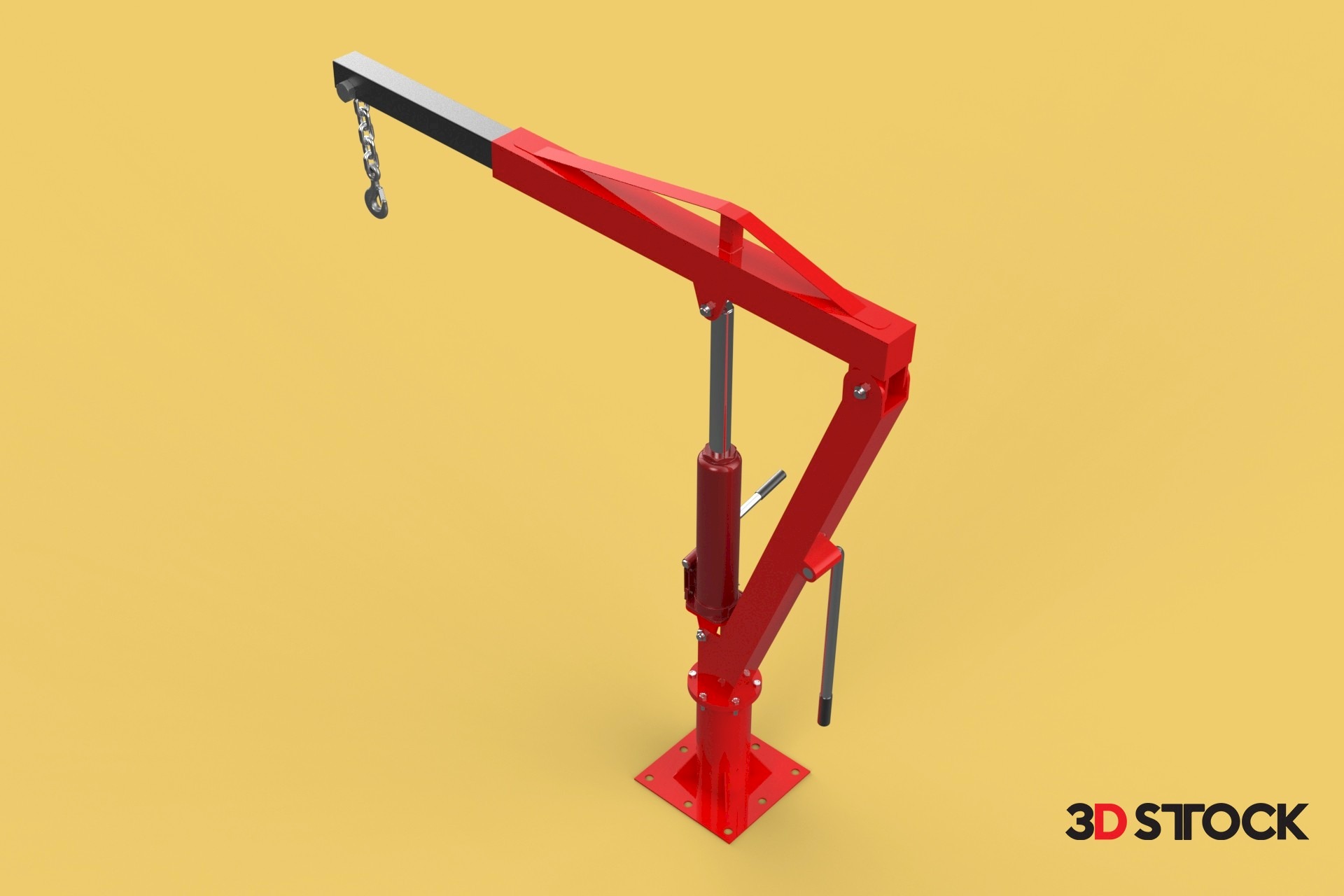

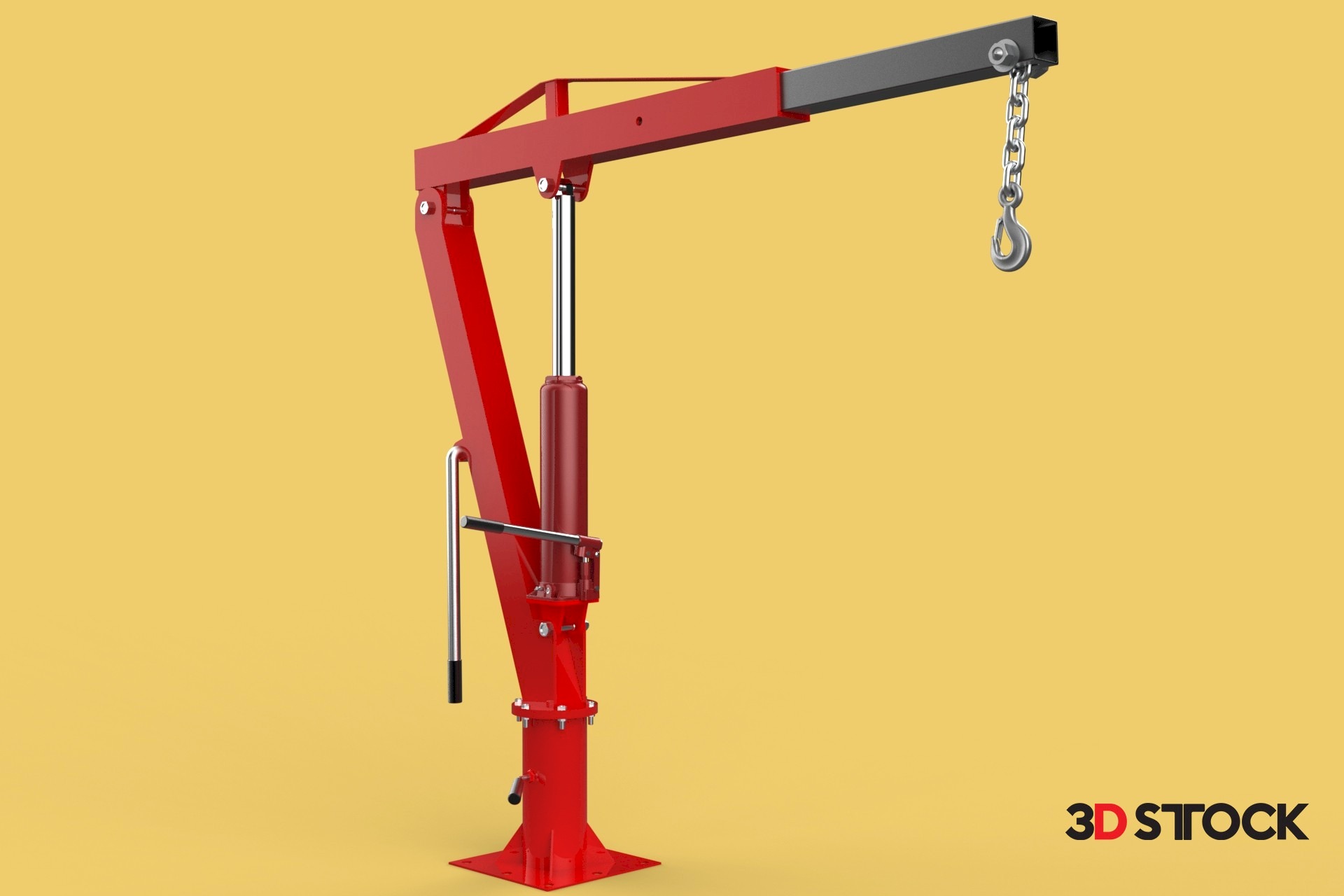

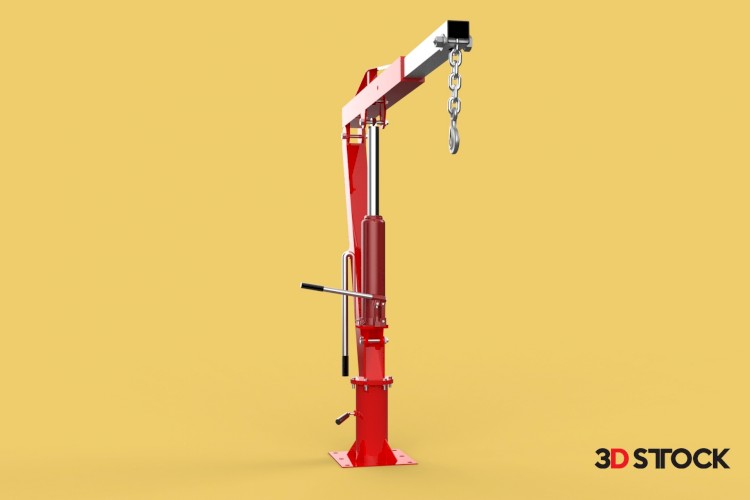

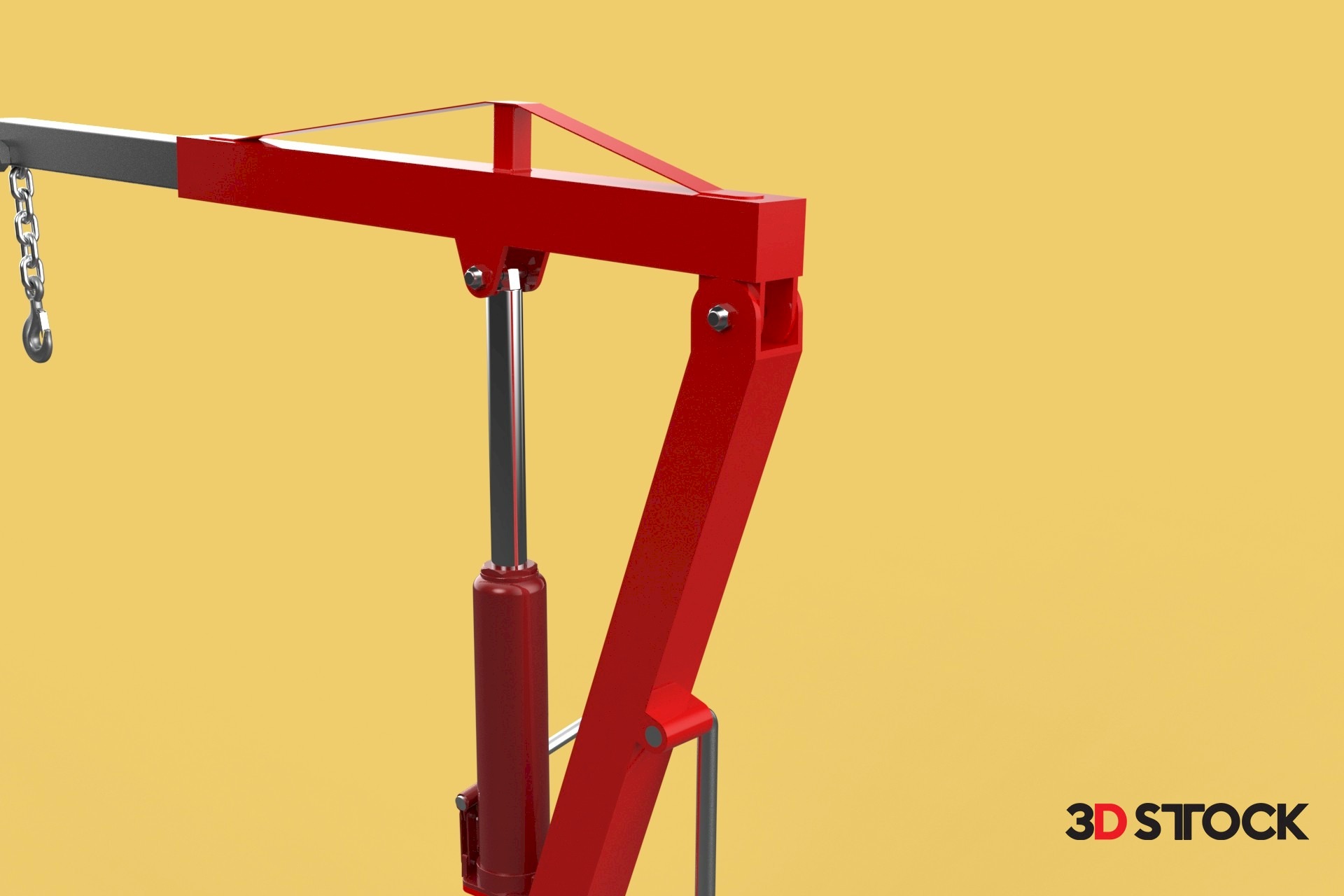

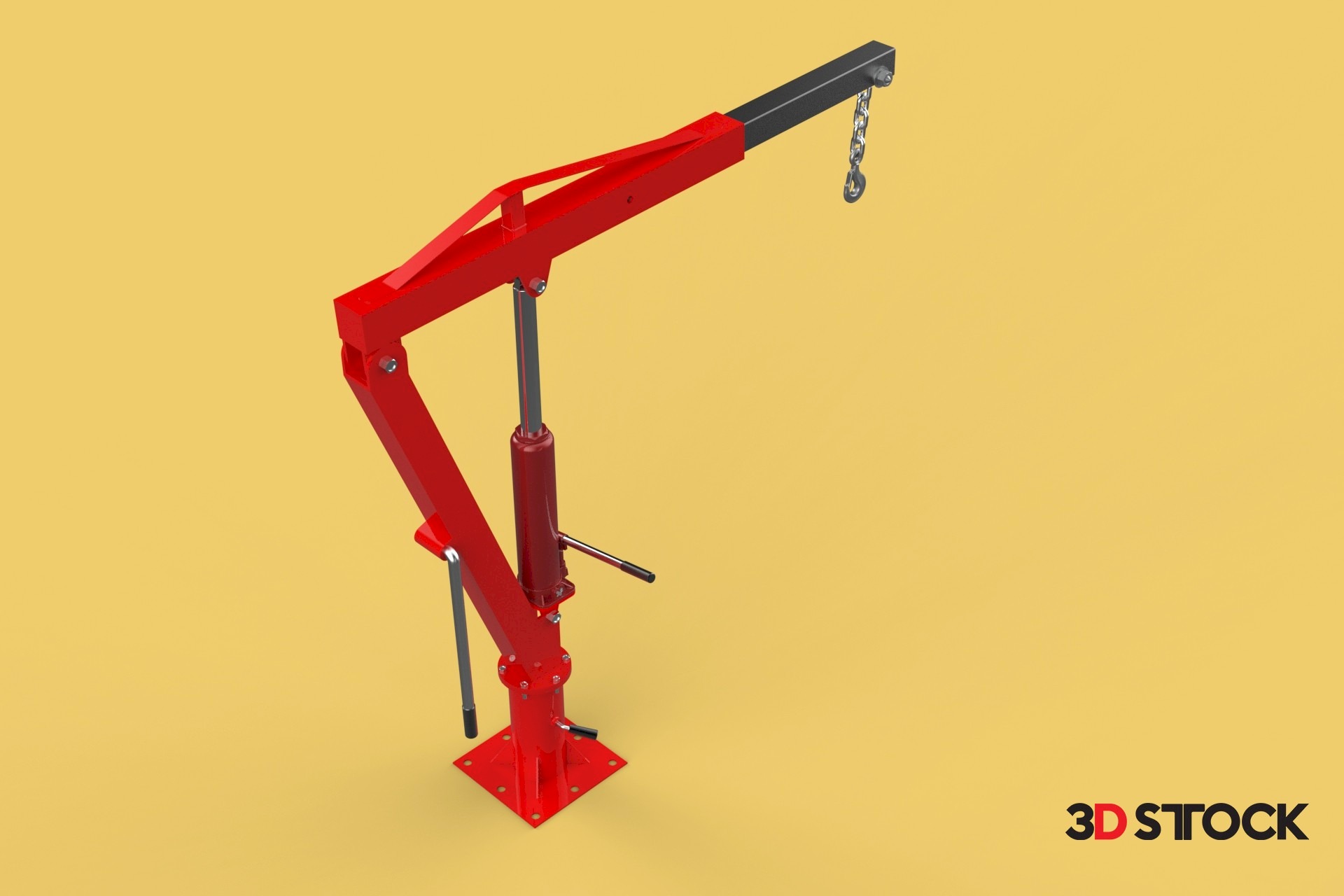

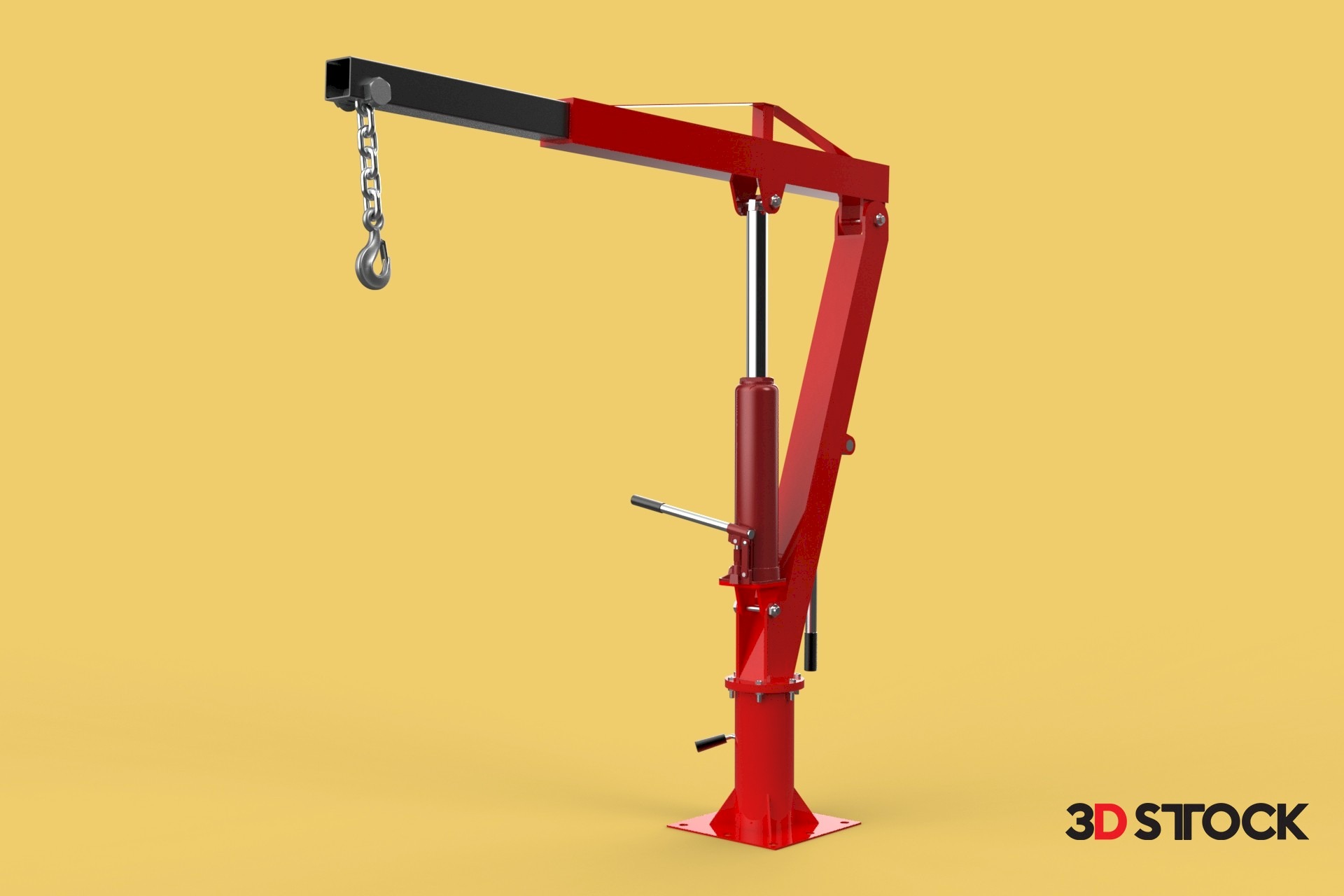

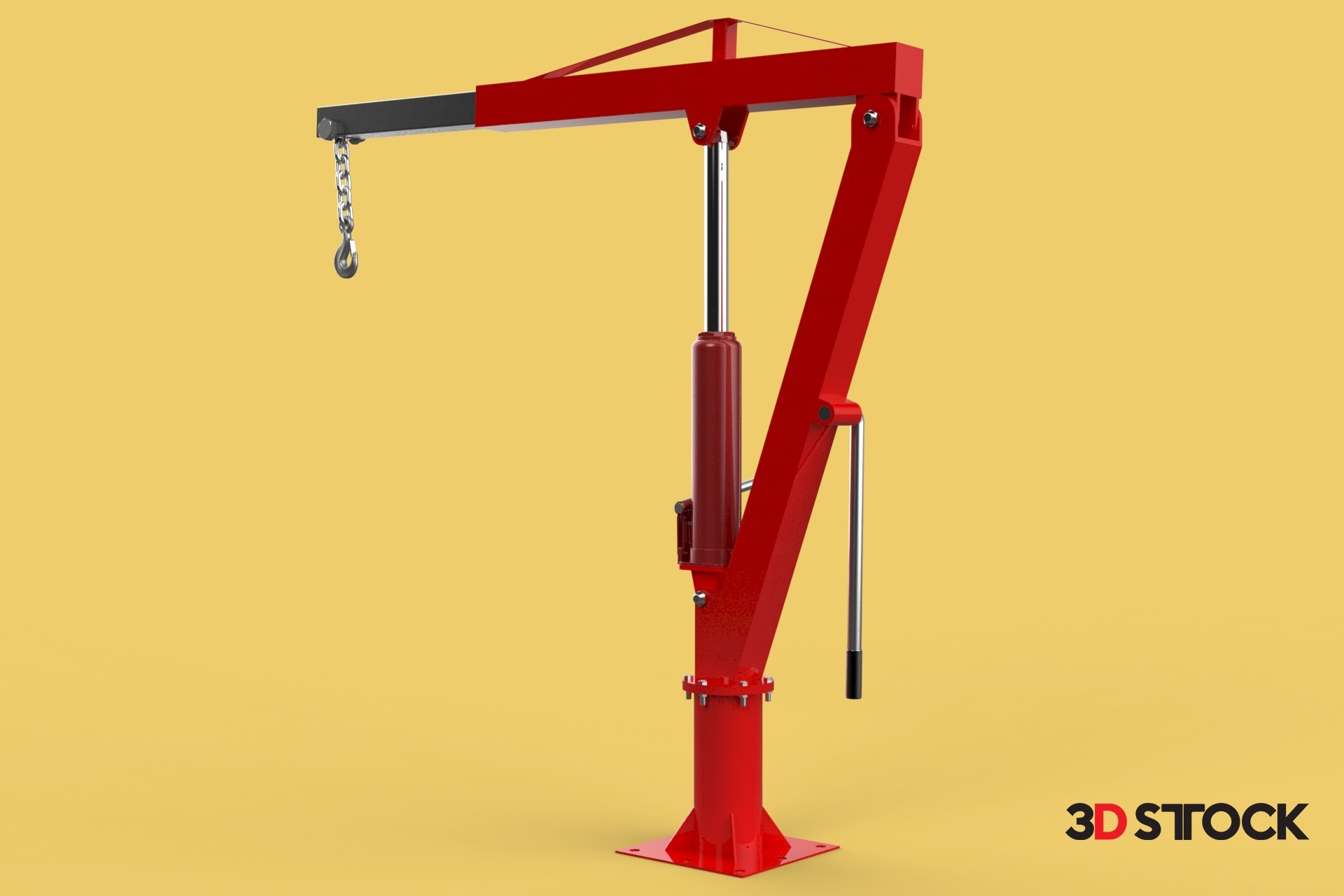

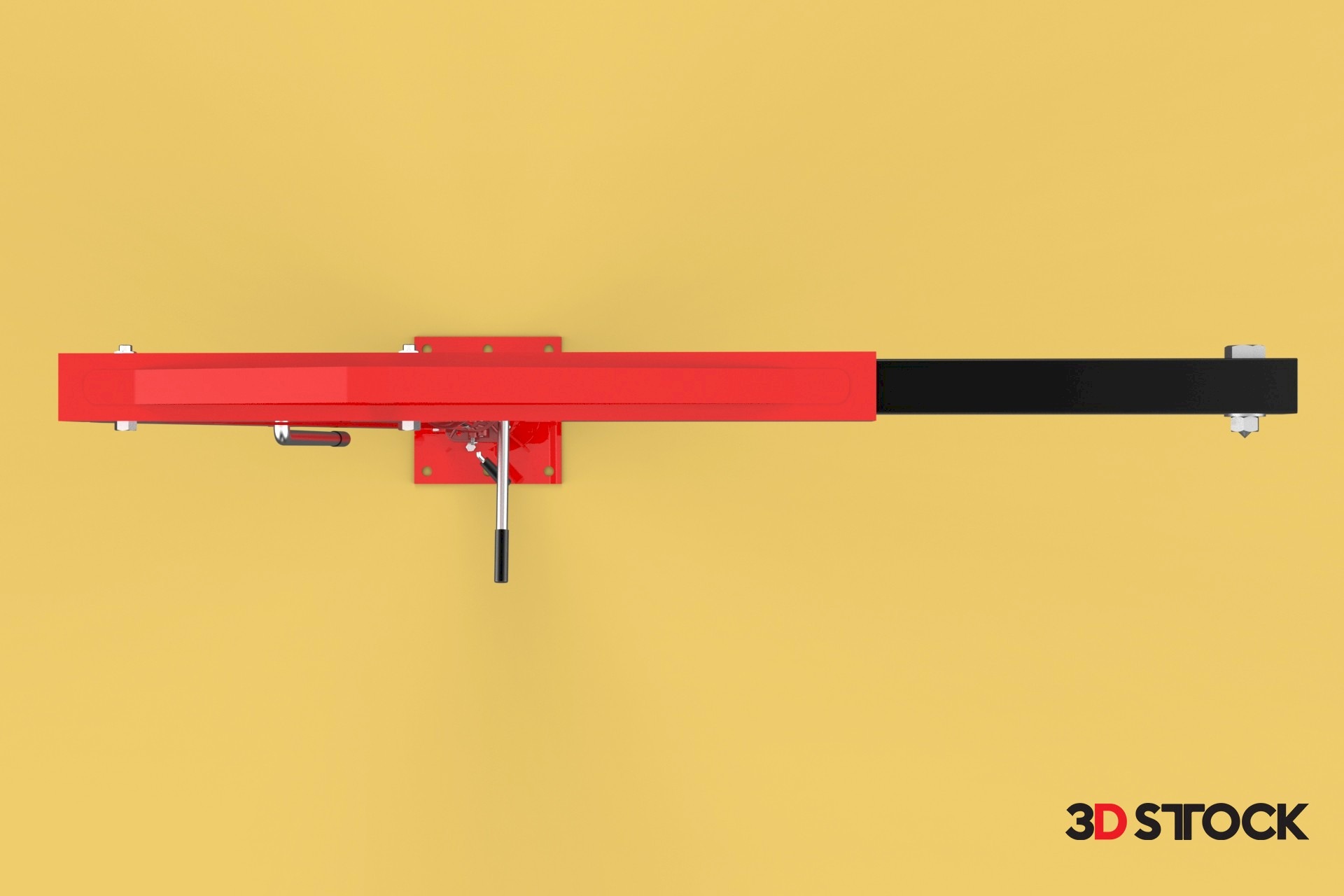

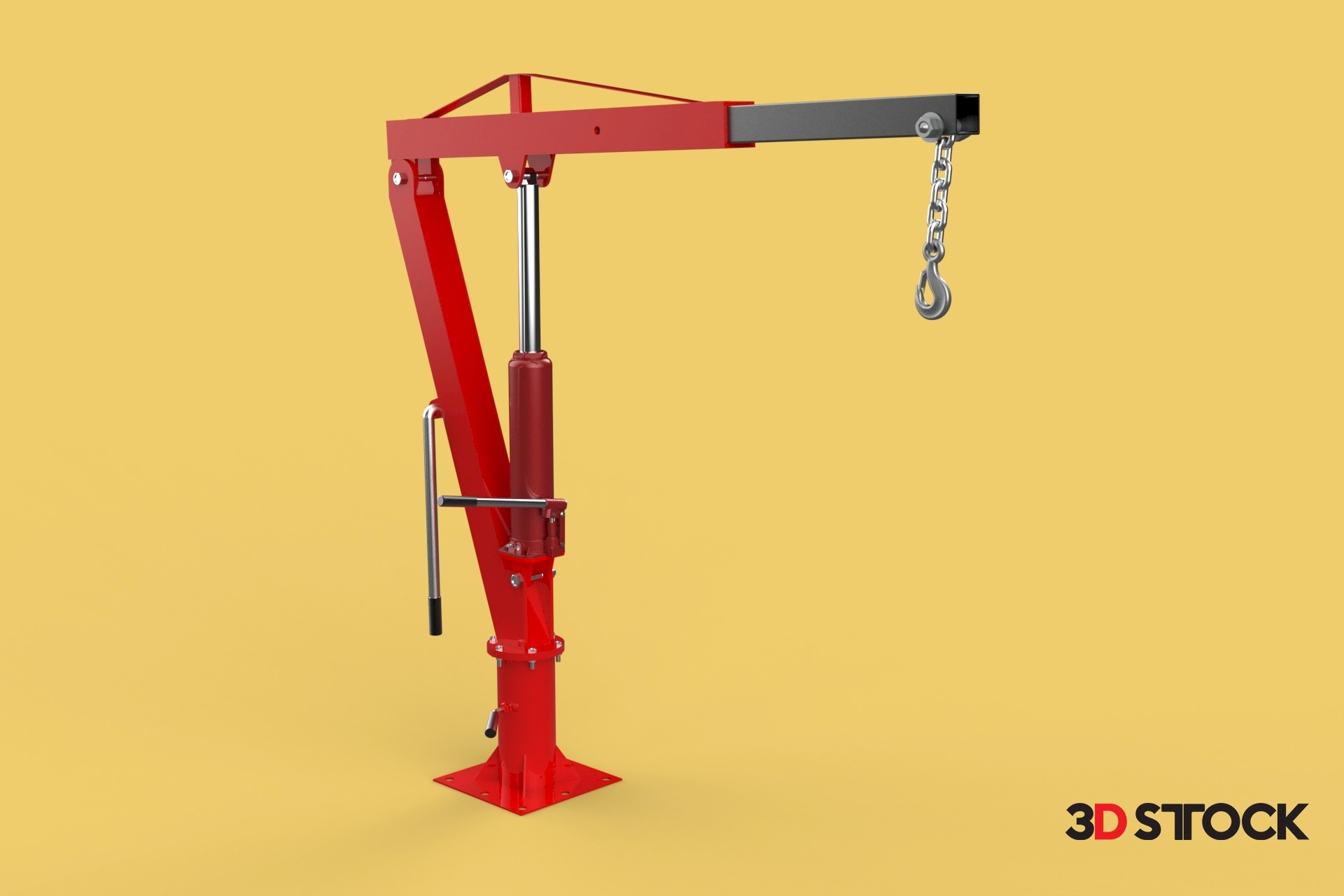

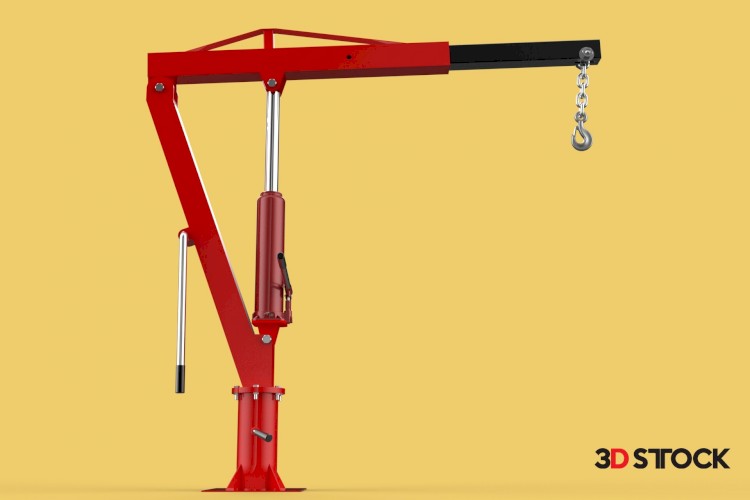

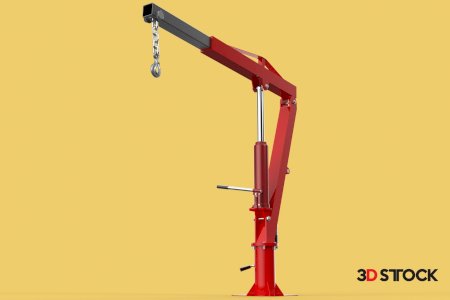

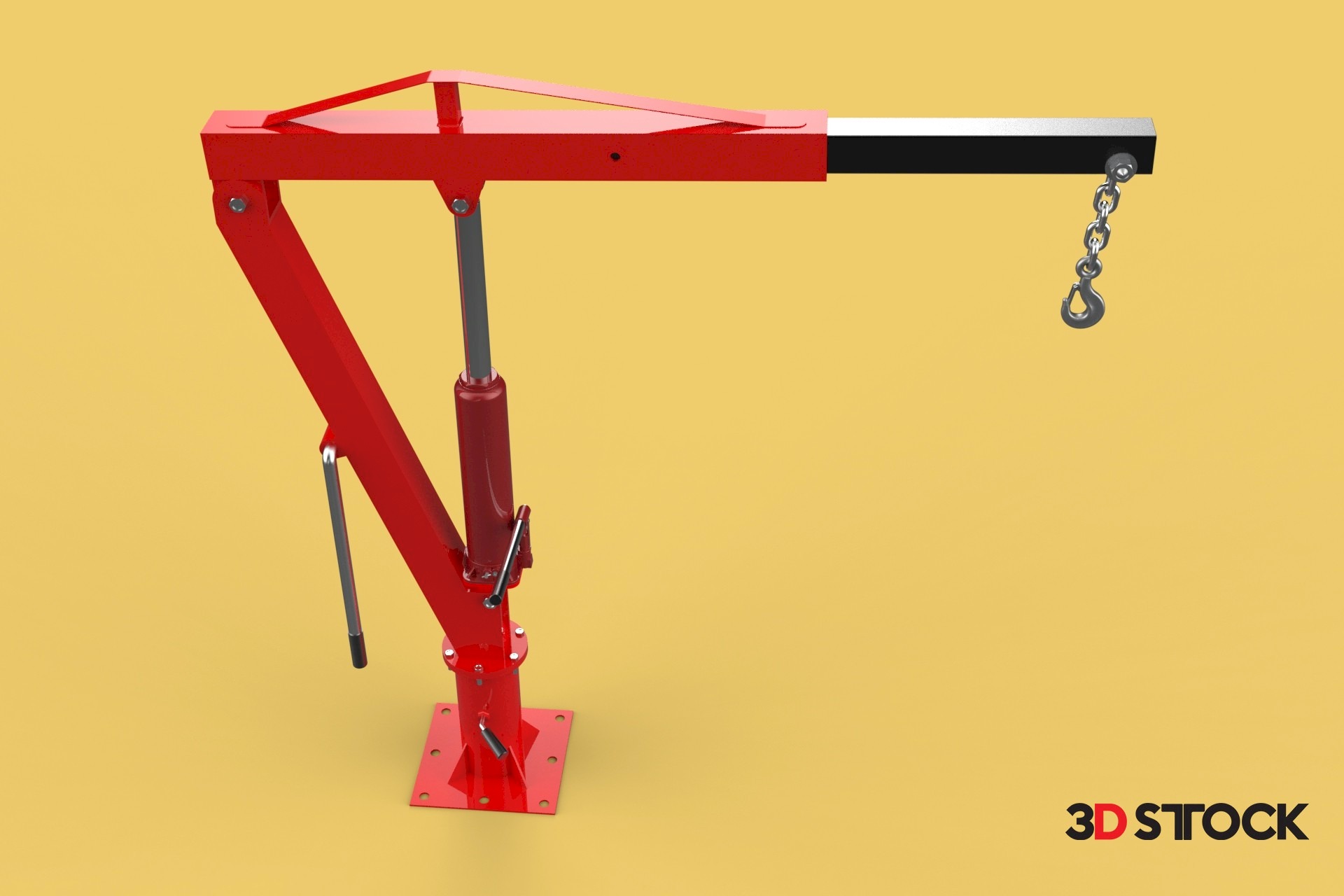

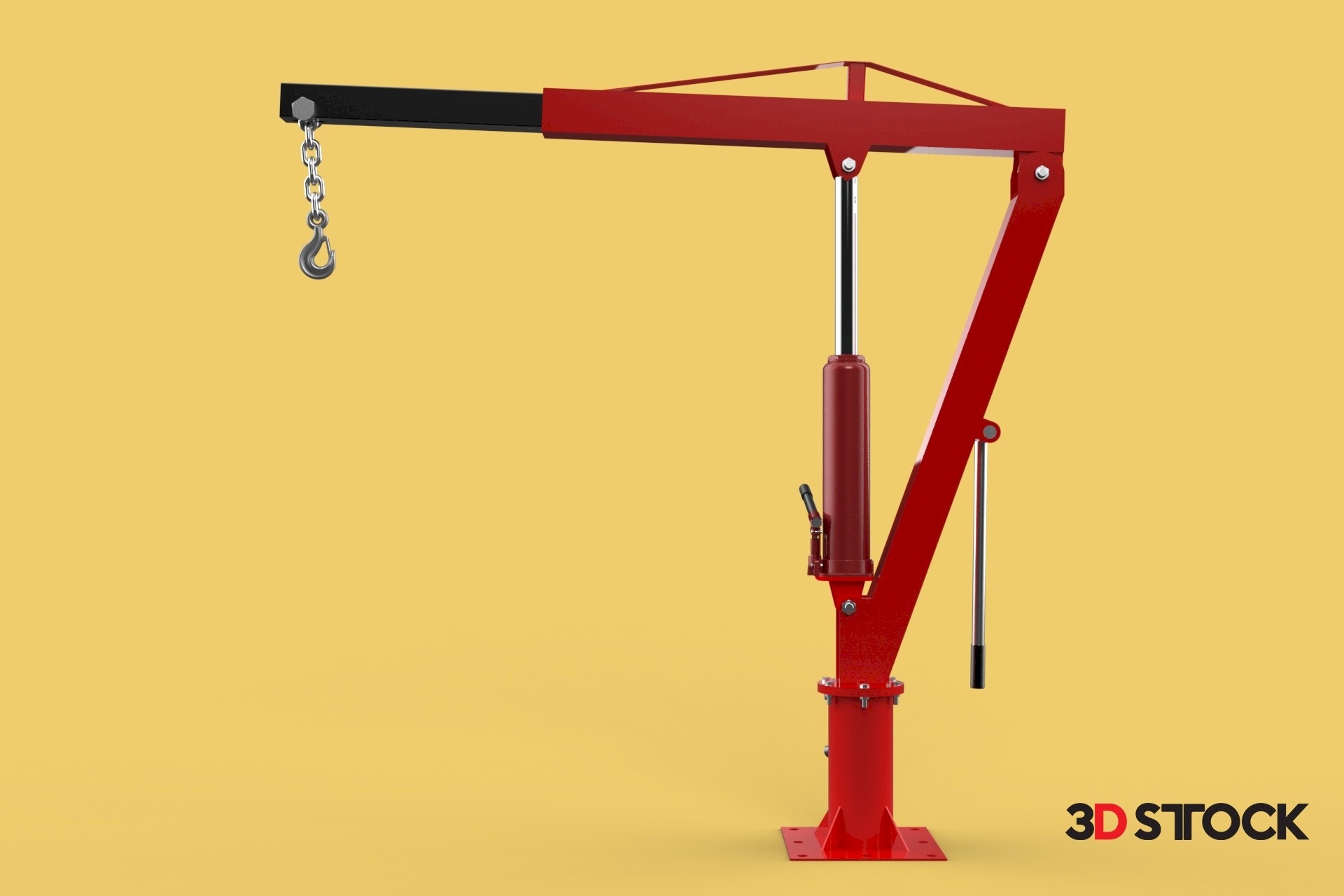

SWIVEL LIFTING CRANE WINCH HOIST: Versatile and Powerful Truck-Mounted Lifting Solution
This describes a lifting device designed to be mounted on a pickup truck, featuring a swiveling jib arm and utilizing a winch or hoist mechanism with a hook for lifting and moving loads. The "slewing" capability refers to the crane's ability to rotate horizontally, providing a wider working radius. This type of crane offers a mobile and adaptable lifting solution for various applications.
Key Features and Functionality:
Truck-Mounted: Specifically designed to be installed onto the bed or chassis of a pickup truck, leveraging the vehicle's mobility.

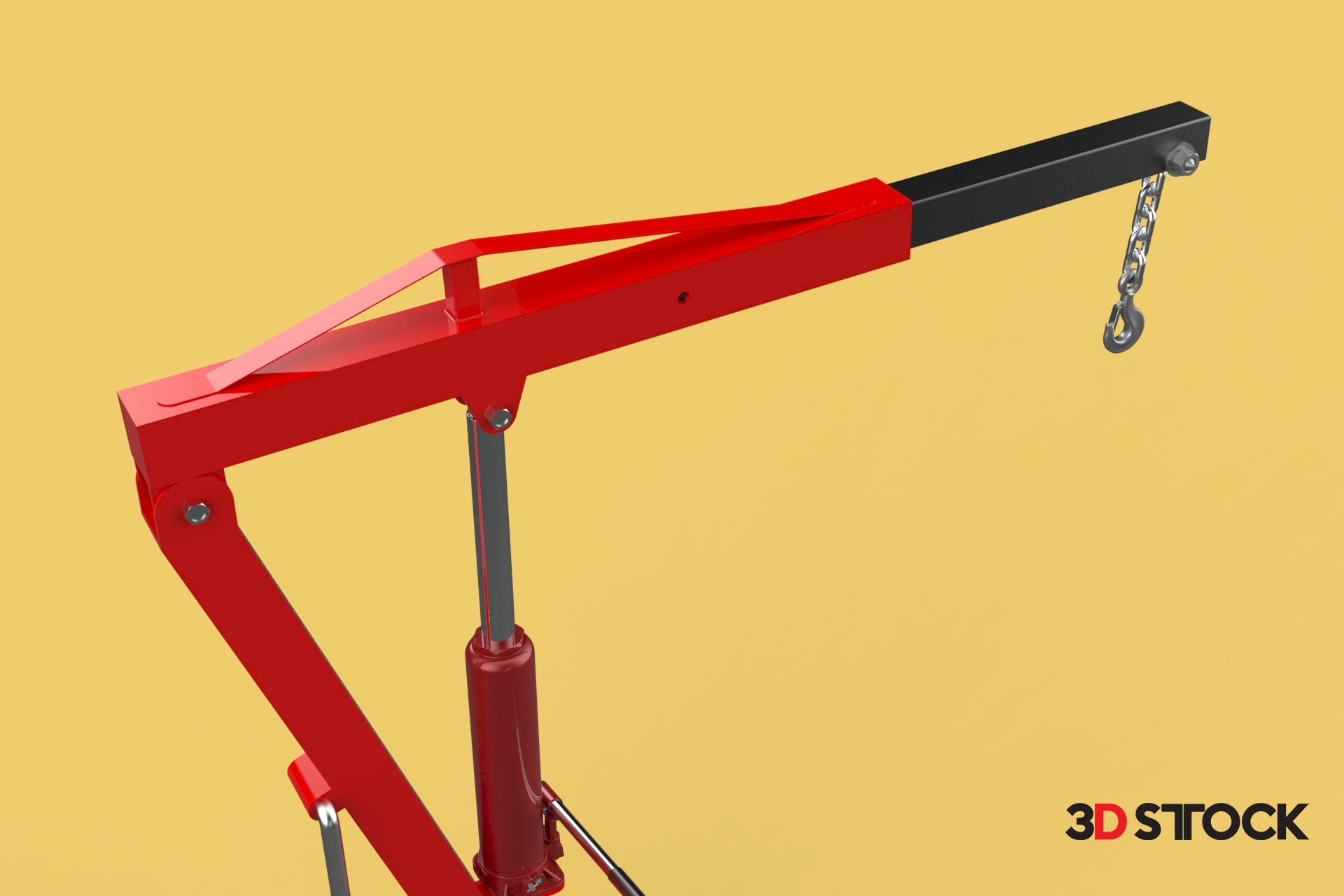

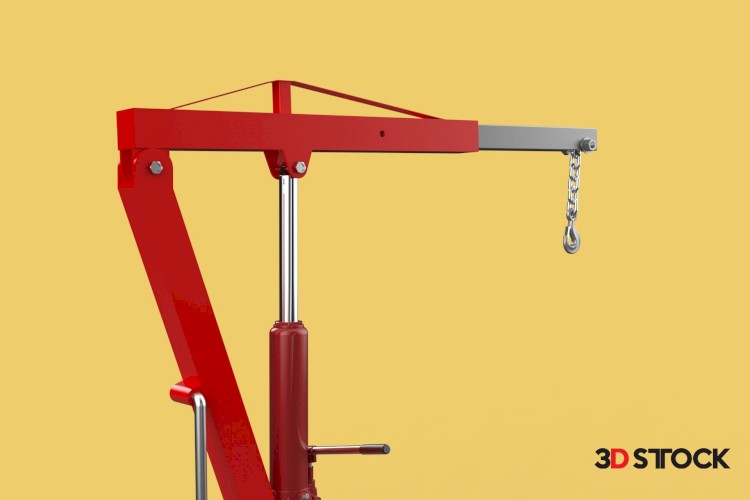

Swivel/Slewing Jib Arm: Features a boom or arm that can rotate horizontally (slew) around a central pivot point. This allows the operator to lift and position loads within a wider arc without moving the entire truck.
Lifting Mechanism (Winch or Hoist):
Winch: Typically uses a cable or rope wound around a drum, powered manually or electrically, to lift and lower loads. Often provides longer reach but potentially slower lifting speeds.
Hoist: Usually electrically or hydraulically powered, using chain or wire rope for lifting. Offers higher lifting capacities and often faster, more controlled lifting.
Hook Attachment: A sturdy hook at the end of the lifting cable or chain for secure attachment to various loads using slings, chains, or other lifting hardware.
Portable and Mobile: The truck-mounted design allows for easy transportation of lifting capabilities to different job sites or locations.
Various Lifting Capacities: Available in a range of lifting capacities to handle different weights, depending on the crane model and truck's capabilities.
Manual or Powered Operation: Slewing, lifting, and lowering can be manual, electric, or hydraulic, depending on the specific model.
Stabilizing Outriggers (Optional but Common): Many models include extendable outriggers to provide additional stability during lifting operations, especially with heavier loads or when the jib is extended.
Safety Features: Includes safety mechanisms such as overload protection, cable/rope guides, and locking mechanisms for the swivel and boom.
Control Options: Operation can be via levers, buttons, or remote controls (wired or wireless) for precise and safe load handling.
Benefits:
Mobility and Portability: Allows lifting capabilities to be brought directly to the work site.
Versatile Lifting: The swiveling jib arm provides a wide working radius and the ability to position loads accurately.
Increased Efficiency: Mechanized lifting (especially with a hoist) saves time and reduces manual labor.
Enhanced Safety: Provides a controlled and stable lifting platform compared to manual lifting.
Cost-Effective Solution: Often more affordable than larger, dedicated cranes for certain applications.
Potential Applications:
Construction and Contracting: Lifting materials, tools, and equipment on job sites.
Maintenance and Repair: Lifting heavy components for machinery or infrastructure maintenance.
Automotive and Mechanical Services: Lifting engines, parts, and equipment.
Delivery and Logistics: Loading and unloading heavy items from vehicles.
Farming and Agriculture: Lifting and moving equipment and supplies.
Emergency Services: Lifting and moving debris or equipment at accident scenes.
In summary, a swivel lifting crane winch hoist mounted on a pickup truck offers a highly mobile, versatile, and often powerful lifting solution with the added benefit of a slewing jib for enhanced reach and positioning capabilities.
